Mechanics & Gauges

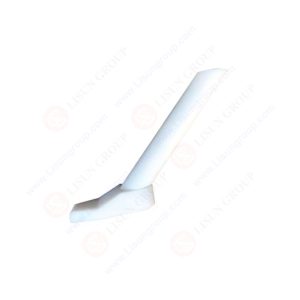

EN 60335-2-2 Figure Z101 and UL 1447 Figure 66.1 Foot Probe
Model: SMT-PA235A
EN 60335-2-2 Figure Z101 and UL 1447 Figure 66.1 compliant foot probe for electric shock and structural integrity testing of portable heating appliances.

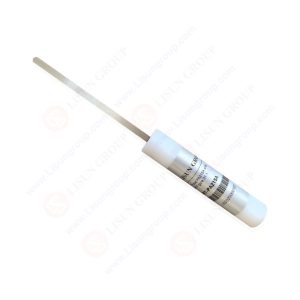

UL 498 Figure 31.1 Dimensional Compliance Gauge
Model: SMT-PA215A
Specialized testing gauge for verifying plug, socket, and power connector dimensional compliance with UL 498 structural requirements. Features high-hardness alloy steel with low thermal expansion for consistent accuracy. Designed for electronics and appliance safety testing.

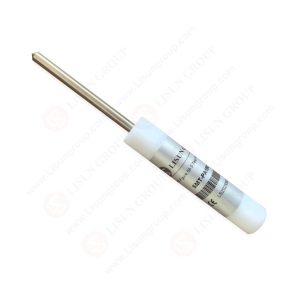

UL 982 Figure 58.5 and UL 498 Figure 10.1 Test Probe PA190
Model: SMT-PA190
Test Probe PA190 (50.8mm total length, 3.2mm head, 6.4mm diameter) complies with UL 982 Figure 58.5 and UL 498 Figure 10.1 standards for evaluating accessibility of hazardous parts in hand-supported or hand-held appliances.
UL 982 Figure 58.5 Test Probe PA190
Model: SMT-PA190
UL 982 Figure 58.5 Test Probe PA190 verifies hazardous part inaccessibility in refrigerators and freezers. Compliant with UL 498 Figure 10.1 for appliance safety testing.
UL 499 Figure 7.4 PA180 Test Probe for Hand-Supported Enclosure
Model: SMT-PA180
UL 499 Figure 7.4 PA180 test probe verifies enclosure safety for hand-supported heating appliances. Stainless steel probe with 10N thrust simulates user contact to test hazardous part accessibility.

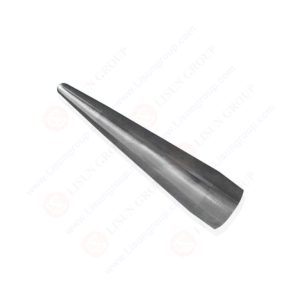

UL 507 Figure 8.1 PA160B Impeller Accessibility Test Probe
Model: SMT-PA160B
UL 507 Figure 8.1 compliant impeller accessibility test probe for portable appliance safety verification. Applies 4.45N force to validate impeller guard effectiveness.
UL 507 Figure 8.1 PA160B Probe for Portable Appliance Impellers
Model: SMT-PA160B
UL 507 Figure 8.1 Probe ensures impeller safety by preventing contact during testing.
UL 507 Figure 8.1 PA160B Impeller Accessibility Test Probe for Portable Appliances
Model: SMT-PA160B
UL 507 Figure 8.1 PA160B probe for impeller accessibility testing in portable appliances. Ensures compliance with UL 507 safety standards by verifying guard effectiveness against contact with rotating impellers under specified force conditions.
UL 1278 Figure 9.1 Hazardous Moving Parts Probe PA160
Model: SMT-PA160
Ensures guards prevent contact with hazardous fan blade parts, tested with 1 lb force.
