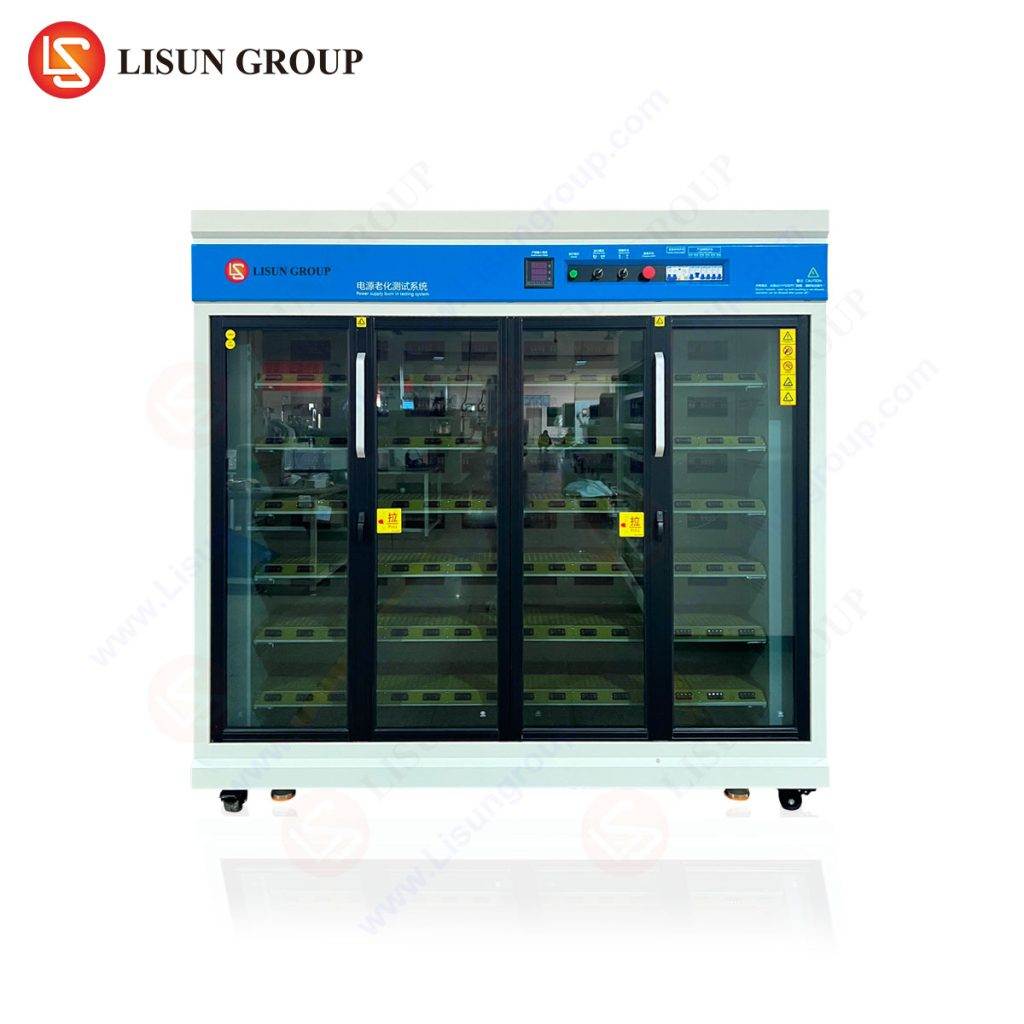

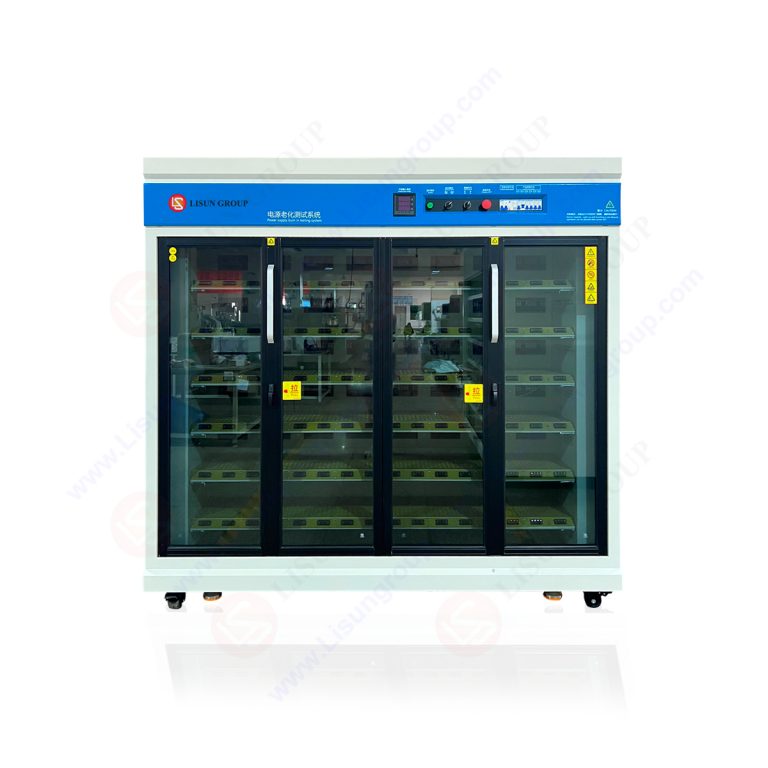

Charger Aging Test Rack (Constant Temperature)

Specification:

• Supports QC3.0/PD3.0/PPS/AFC/FCP/SCP/QC4 protocols; (Note: not applicable for car charger aging test)
• Input: 2~100V, 0.1~5A/CH, 65W/CH, Load total 8CH/520W;
• Load channel is non-isolated, CC/CV 2 working modes, supports CC mode in parallel connection;
• Equipped with input ON/OFF timing control function;
• Automatically generates Excel files;
• Aging rack supports 240 channels, single group output at 65W/5A;
• Aging rack supports 120 channels, double group output at 65W/5A;
• Rack dimensions: L2050*W900*H1950MM;
• Each rack is independently controlled; industrial design, includes 6 layers, each layer height: 170mm; product area depth 360mm; layer plate is flip-structured.
• Connection method: AC input terminal is a multi-use socket (surface-mounted, two rows), DC output port is 5.5*2.5DC female socket + 5.5*2.1DC female socket + dual parallel USB+TYPE-C interface, adapter board is middle partition-mounted;
• Temperature control range: internal temperature to 55 ± 5℃, double-layer hollow folding glass door;

Control System:

• Industrial control computer (includes standard industrial design cabinet, HP industrial main computer, monitor, keyboard, and mouse);
• Control cabinet dimensions: L900*W900*H1950MM;
• Equipped transformer 30KVA, three groups voltage automatic switching, AC110V/220V;
• One electric control cabinet can control 2 sets of aging racks;

Tags: SY65240T
