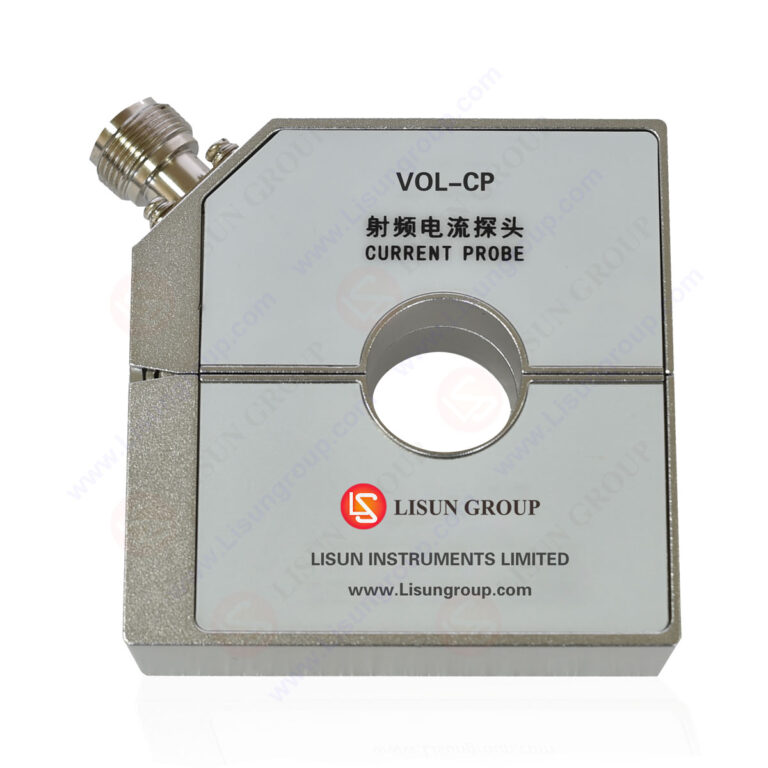

Radio Frequency Current Probe

The VOL-CP Radio Frequency Current Probe complies with CISPR15:2018, IEC/EN55015-2019, and GB/T17743-2021 standards, designed for testing the conducted disturbance voltage of wired network interfaces, excluding power supply interfaces, and the conducted disturbance voltage of ELV lamps, excluding power supply interfaces.

Standard: CISPR15:2018 / GB17743 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment” EN55015 “Limits and methods of measurement of radio disturbance characteristics of electrical lighting and similar equipment.”

Specification: Output impedance 50Ω, Available frequency range 20Hz-300MHz, The scope of the transfer characteristic flat area (-3dB) 0.15MHz-160MHz, Radio frequency connector N, Test current limit 100A（＜400Hz）, 2A（RF CW）, 50A（Pulse peak）, Voltage standing wave ratio ＜2（f≥10MHz）, Insert resistance ≤0.8Ω, Flat area transfer impedance About 5.88Ω, Flat region transfer admittance About -15.4dBS, Resistance to external magnetic fields ＞40dB, Probe inner diameter 22mm, Exterior dimensions 78×78×28mm, Weight 350g, Frequency response graph of RF current probe transfer admittance.

Typical applications: Radio Frequency Current Probes (CISPR15:2018, IEC/EN55015-2019)
