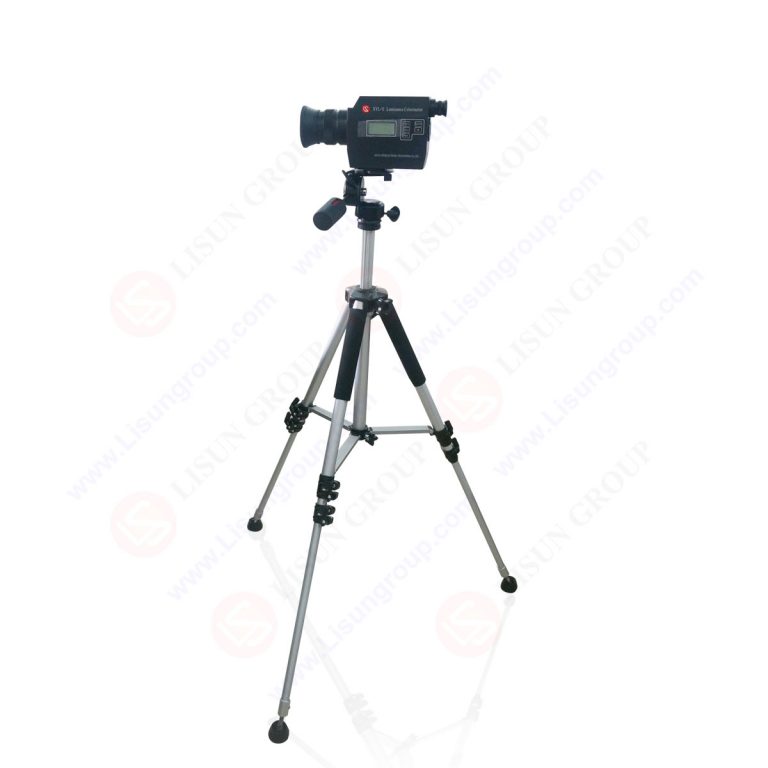

XYL-VI Luminance Photoelectric Colorimeter

The XYL-VI Luminance Photoelectric Colorimeter implements a fully digital architecture, replacing traditional analog sensors with digital X(λ), Y(λ), Z(λ) spectral response sensors and substituting analog measurement systems with digital signal processing. This design eliminates analog components, thereby eliminating zero drift inherent in conventional colorimeters. The digital sensor configuration provides extended dynamic range, enhanced electromagnetic interference immunity, and improved measurement accuracy.

The XYL-VI Luminance Photoelectric Colorimeter incorporates an integrated RS232 interface for computer connectivity. Calibration procedures are software-controlled, facilitating remote monitoring applications. The instrument supports calibration via proprietary software for data acquisition and reporting, and can be referenced against standard illuminants to achieve high-precision measurements of x, y color coordinates and correlated color temperature. This real-time measurement system operates under Windows 7, 8, 10, and 11 environments.

• Luminance Y Measurement: Digital V(λ) sensor with relative spectral sensitivity f1<5.5%. Dynamic range: 10-1,000,000 cd/m². Accuracy: <5%. Sensitivity: 0.01 cd/m². Repeatability: 0.01 cd/m²
• Geometric Parameters: Measurement angle: 1°. Measurement distance: 0.7m to infinity
• Color Coordinate Measurement: x, y, u, v (u’, v’) coordinates (luminance >10 cd/m²). Accuracy (x, y): ±0.002 (CIE Standard Illuminant A, 100 cd/m²). Repeatability (x, y): ±0.0005 (CIE Standard Illuminant A)
• Correlated Color Temperature: Dynamic range: 1,350-25,000K. Sensitivity: 1K. Accuracy: ±20K (CIE Standard Illuminant A, 100 cd/m²)
• Environmental Performance: Temperature coefficient: -0.1%. No range-switching errors
• Measurement Rate: Refresh frequency: 1 measurement/second (≥10 cd/m²), 1 measurement/3 seconds (<10 cd/m²)
• Display & Interface: 128×64 pixel LCD with data hold function. RS232 computer interface with control software
• Power Requirements: 9V battery or 6V DC adapter
• Physical Dimensions: 270×95×225 mm (tripod optional)
