Mechanics & Gauges

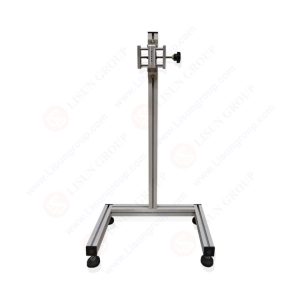

IEC 60884-1 Clause 24.10 Figure 32 Multi-Movable Socket Outlets Mechanical Strength Testing Device
Model: LS-B11
LS-B11 mechanical strength testing device for detachable multi-outlet sockets complies with IEC 60884-1:2022 Clause 24.10 Figure 32 and GB/T 2099.1-2021 standards for quality verification.

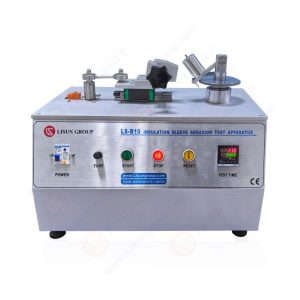

Pin Insulation Sleeve Abrasion Testing Apparatus
Model: LS-B10
Apparatus for abrasion testing of plug pin insulating sleeves compliant with IEC 60884-1:2022 Clause 24.8 Figure 31 and BS 1363-1:2023 Clause 13.17.3 Figure 9. Designed for laboratory validation of electrical plug durability.

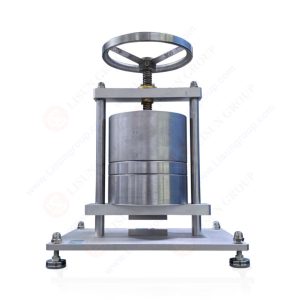

IEC 60884-1 Clause 10.2 & 24.6 Figure 6 Compression Testing Apparatus
Model: LS-B08
Compression testing apparatus compliant with IEC 60884-1:2022 Clause 10.2 and 24.6 Figure 6, EN 50075:1990 Clause 13.1 and Figure 7, and GB/T 2099.1-2021. Applies calibrated weights to verify plug mechanical strength and pressure resistance. Designed for laboratory validation and quality control departments.

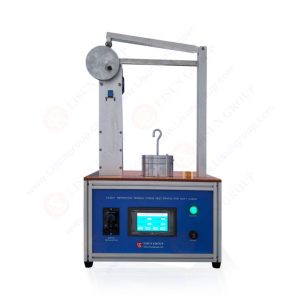

IEC 60884-1 Clause 23.2 Figure 27 Cable Retention Force Testing Apparatus
Model: LS-B07
This cable retention force testing apparatus verifies wire fixation integrity in plugs and sockets per IEC 60884-1:2022 Clause 23.2 Figure 27, EN 50075:1990, and GB/T 2099.1-2021 standards. Designed for compliance validation in electrical accessory manufacturing.

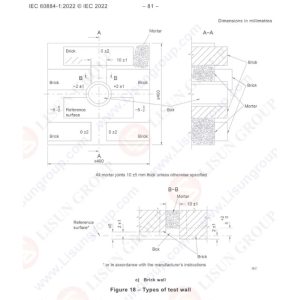

IEC 60884-1 Clause 16.2 Figure 18 Test Wall for Concealed Socket IP Waterproof Testing
Model: LS-B05
LS-B05 test wall complies with IEC 60884-1:2022 Clause 16.2 Figure 18 for IP waterproof testing of concealed sockets in 86 mounting boxes under damp conditions.
IEC 60884-1 Clause 16.2 Figure 18 Test Wall for Concealed Socket IP Waterproof
Model: LS-B05
The LS-B05 Test Wall adheres to IEC 60884-1:2022, simulating waterproof performance for electrical accessories in damp conditions.

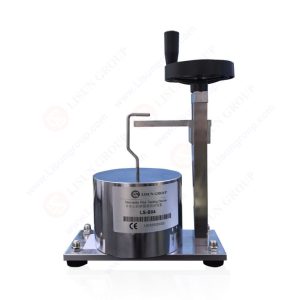

IEC 60884-1 Clause 14.2 Figure 17 Non-Solid Pin Hardness Testing Device
Model: LS-B04
LS-B04 testing device verifies mechanical strength of non-solid pins per IEC 60884-1 Clause 14.2 Figure 17, VDE 0620-2-1, and GB/T 2099.1-2021 standards.
IEC 60884-1 Clause 14.2 Figure 17 Non-Solid Pins Testing Device
Model: LS-B04
Complies with IEC 60884-1 Clause 14.2, VDE 0620-2-1 for testing non-solid pin strength.

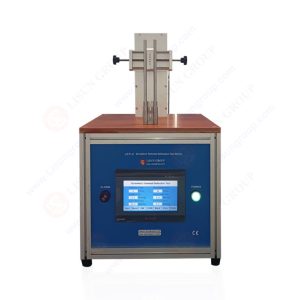

IEC 60884-1 IEC 60669-1 Clause 12.3.12 Screwless Terminal Deflection/Bending Test Device
Model: JCY-2
JCY-2 Screwless Terminal Bending Test Device for compliance with IEC 60884-1 Clause 12.3.12 and IEC 60669-1 Clause 12.3.12 standards for terminal connection performance verification.
