Mechanics & Gauges
UL 498 Figure 100.1 Improper Insertion Test Blades
Model: GNGPL-SB1889C
UL 498 Figure 100.1 compliant test blades for evaluating attachment plug and receptacle safety through improper insertion simulation. Precision-engineered to UL standards.

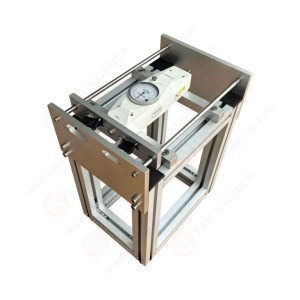

UL 498 Figure 74.2 SB1888 Typical Test Apparatus
Model: GNGPL-SB1888
UL 498 Figure 74.2 compliant test apparatus for blade retention performance evaluation of attachment plugs and receptacles, meeting UL safety standards.

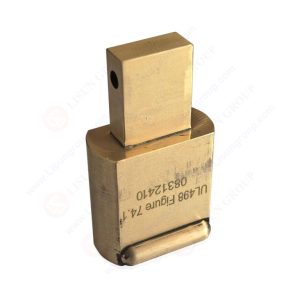

UL 498 Figure 74.1 Reference Plug Gauge
Model: GNGPL-SB1860
UL 498 Figure 74.1 Reference Plug Gauge for dimensional verification of attachment plugs and receptacles per UL 498 standard compliance requirements.

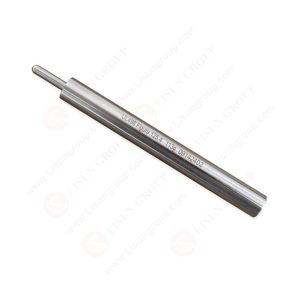

SB1622E 4 oz (113 g) Ground Pin Compliant with UL 498 Figure 119.4
Model: GNGPL-SB1622E
SB1622E 4 oz (113 g) Ground Pin is a precision testing component engineered to UL 498 Figure 119.4 standards for verifying dimensional accuracy, insertion compatibility, and grounding reliability of electrical receptacle terminals.
SB1622E 4 oz (113 g) Ground Pin According to UL 498 Figure 119.4
Model: GNGPL-SB1622E
UL 498 Figure 119.4-compliant ground pin test fixture for verifying dimensional accuracy, insertion compatibility, and grounding reliability in electrical receptacles.

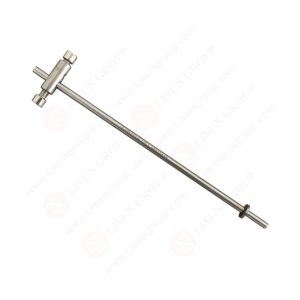

UL 498 Figure 123.2 SB1610 Test Pin B
Model: GNGPL-SB1610
UL 498 Figure 123.2 SB1610 Test Pin B is utilized for verifying the structural and dimensional compliance of plugs and sockets with UL 498:2012 standards, ensuring adherence to international safety requirements.
UL 498 Figure 125.2 SB1610 Test Pin B
Model: GNGPL-SB1610
UL 498 Figure 125.2 SB1610 Test Pin B for compliance testing of plug and socket dimensions per UL 498:2017 standards in electronics and appliances.
SB1610 Test Pin B of UL 498 Figure 125.2
Model: GNGPL-SB1610
Utilized for testing and inspecting plugs and sockets to UL 498 standards.
UL 498 Figure 119.1 SB1609A Test Pin A
Model: GNGPL-SB1609A
UL 498 Figure 119.1 SB1609A Test Pin A is a high-precision testing instrument engineered to verify dimensional compliance and contact performance of electrical receptacles per UL 498 standards.
