Mechanics & Gauges

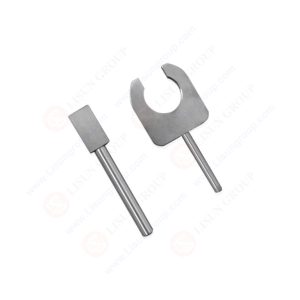

NF C 61-314 C7 Gauges for Pin Spacing Verification
Model: GNGPL-631C7
NF C 61-314 C7 gauge for verifying pin spacing of plugs and sockets, ensuring compliance.

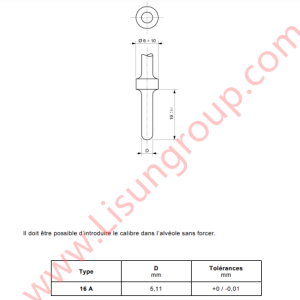

NF C 61-314 Figure C6 Gauge for Standard V Sheet Cell
Model: GNGPL-631C6
Precision gauge for verifying maximum opening of contact tubes per NF C 61-314.
NF C 61-314 Figure C6 Maximum Opening Verification Gauge for Standard V Sheet Cells
Model: GNGPL-631C6
NF C 61-314 Figure C6 compliant gauge for verifying maximum opening of 16A contact tubes in standard V sheet cells. Precision tool for electrical component quality control.
NF C 61-314 C5 Two-Pole Plug Insertion Gauge
Model: GNGPL-631C5
NF C 61-314 C5 gauge verifies insertion performance of two-pole plugs with precision dimensional tolerances for electrical safety compliance. Designed for quality control laboratories and manufacturing facilities.

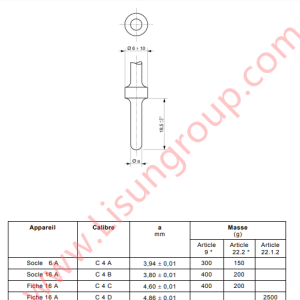

NF C 61-314 Figure C4 Extraction Force Verification Gauge
Model: GNGPL-631C4ABCD
NF C 61-314 Figure C4 compliant extraction force gauge for testing 6A/250V and 16A/250V socket contact tubes. Four gauge variants ensure compliance with standard retention requirements.
NF C 61-314 Gauge C 3 for Distance Verification to First Contact Point
Model: GNGPL-631C3
NF C 61-314 Gauge C 3 ensures compliance by verifying distance to first contact point.
NF C 61-314 Calibre C3 First Contact Point Distance Gauge
Model: GNGPL-631C3
NF C 61-314 compliant gauge for precise measurement of first contact point distance in plugs and sockets. Essential for 33ing and certification.
NF C 61-314 Figure C.2 Gauge Apparatus for Plug Grip Testing
Model: GNGPL-631C2
NF C 61-314 Figure C.2 compliant gauge apparatus for plug grip testing of household socket systems (6A/250V, 16A/250V). Verifies plug pin entry hole dimensions per standard specifications.

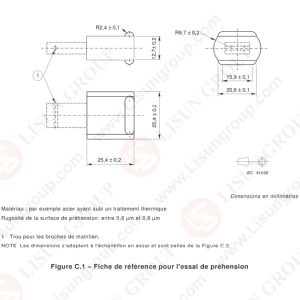

NF C 61-314 Figure C.1 Grip Test Reference Gauge
Model: GNGPL-631C1
Precision-engineered NF C 61-314 Figure C.1 grip test reference gauge for verifying single-pole insertion prevention in 6A/250V and 16A/250V socket systems.
