Mechanics & Gauges
IEC 60884-1 Clause 30.1 Figure 41 | IEC 60811-3-1 Clause 8 | High Temperature Pressure Test Device
Model: GNGPL-3610-2PA
Compliant with IEC 60884-1 Clause 30.1 Figure 41 and IEC 60811-3-1 Clause 8 for insulation and sheath heat resistance testing of plugs and cables.
BS 1363-1 Figure 7 Mounting Verification Plate
Model: GNGPL-3607
BS 1363-1 Figure 7 compliant mounting verification plate for dimensional accuracy testing of 13 A plugs, socket-outlets, and associated electrical components.

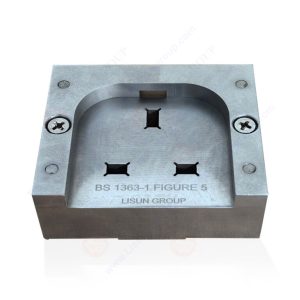

BS 1363-1 Figure 5 Plug Pin Dimensional Gauge
Model: GNGPL-3605
BS 1363-1 Figure 5 Plug Pin Gauge verifies dimensional compliance per BS 1363-1 standards. Essential for quality assurance, certification testing, and R&D in electrical components.
BS 1363-3 Figure 5 Adaptor Pin Verification Gauge
Model: GNGPL-3605
Precision gauge engineered to verify adaptor pin compliance with BS 1363-3 Figure 5 specifications for pin position, length, and joint surface fit.

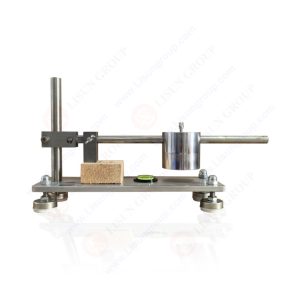

BS 1363 Figure 2 Device for Mechanical Strength Test on Resilient Covers
Model: GNGPL-3602
BS 1363 Figure 2 Device for testing mechanical strength of resilient covers, ensuring BS 1363 compliance.
BS 1363 Figure 2 Mechanical Strength Test Apparatus for Resilient Covers
Model: GNGPL-3602
BS 1363 Figure 2 test apparatus for mechanical strength evaluation of resilient covers on 13A plugs and sockets, ensuring full compliance with BS 1363 standard requirements.

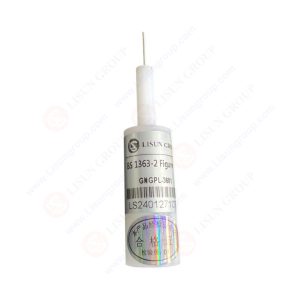

BS 1363-2 Figure 1 Test Pin
Model: GNGPL-3601
Precision test pin for verifying live part accessibility in 13A socket-outlets per BS 1363-2 dimensional gauging requirements. Ensures compliance with UK safety standards.
AS/NZS 3112:2017 Figure G1 Three-Pin Test Plug with Flat and Round Pins for Full-Insertion and Finger Access Prevention Testing
Model: GNGPL-31G1
AS/NZS 3112:2017 Figure G1 compliant three-pin test plug with flat and round pins for full-insertion verification and finger access prevention testing in electrical safety compliance.
AS/NZS 3112 Figure F1 Flat and Round Pin Plug Gauge
Model: GNGPL-31F1
AS/NZS 3112 Figure F1 gauge for dimensional compliance testing of Australian/New Zealand Standard three-pin plugs with flat/round pin configurations.
