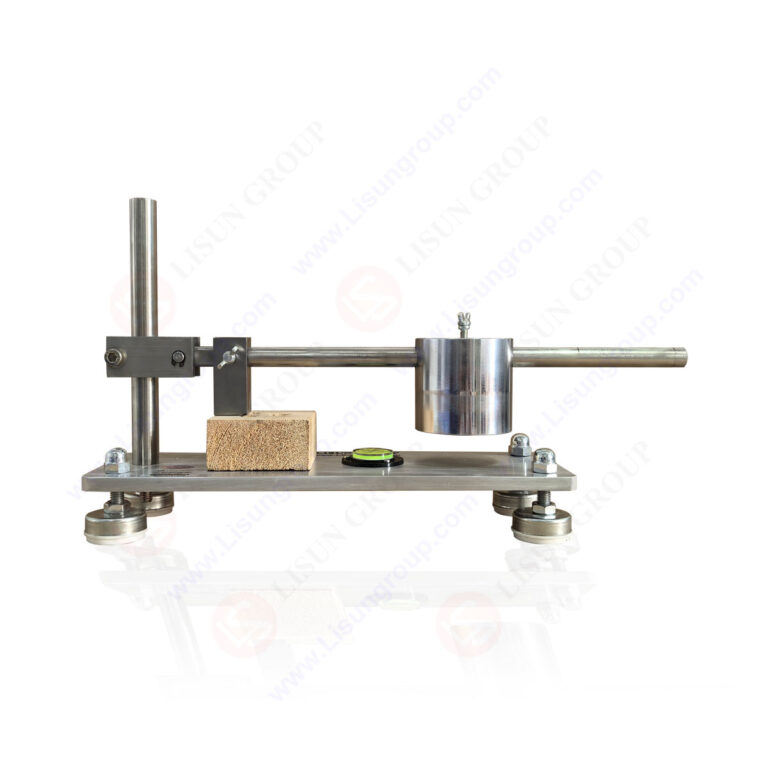

BS 1363 Figure 2 Device for Mechanical Strength Test on Resilient Covers

BS 1363 Figure 2 Device for Mechanical Strength Test on Resilient Covers is engineered for executing mechanical strength tests on resilient covers of plugs and sockets, ensuring adherence to the BS 1363 standard (“13 A plugs, socket-outlets, adaptors and connection units”). It offers precise dimensional accuracy, consistent performance, and dependable test results, making it indispensable for quality inspection in pertinent industries.

• Conforms to BS 1363 standard Figure 2 requirements
• Material hardness exceeding 50HRC
• Minimal thermal expansion coefficient for stable dimensions and tolerances
• Meets standard requirements for gauge dimensions, tolerances, material, hardness, and surface roughness
• Dimensions specified in millimetres
• Includes hardwood block as a supporting element for the test

Test Procedures:

1. Prepare the resilient cover specimen of the plug or socket to be tested, ensuring it is free from damage or defects.
2. Position the specimen in the designated location of the test device according to the BS 1363 standard guidelines.
3. Install the hardwood block as specified in the device configuration to provide proper support during the test.
4. Apply the required mechanical force to the specimen in accordance with the test parameters outlined in the BS 1363 standard.
5. Maintain the applied force for the specified duration to fully evaluate the mechanical strength of the resilient cover.
6. Observe and record the performance of the specimen during and after the force application, checking for any deformation, cracking, or failure.
7. Compare the test results against the BS 1363 standard criteria to determine if the specimen meets the mechanical strength requirements.

Applications:

• Quality inspection and compliance testing of resilient covers for 13 A plugs, socket-outlets, adaptors, and connection units.
• Research and development activities in the electronics industry for optimizing the design and performance of plugs and sockets.
