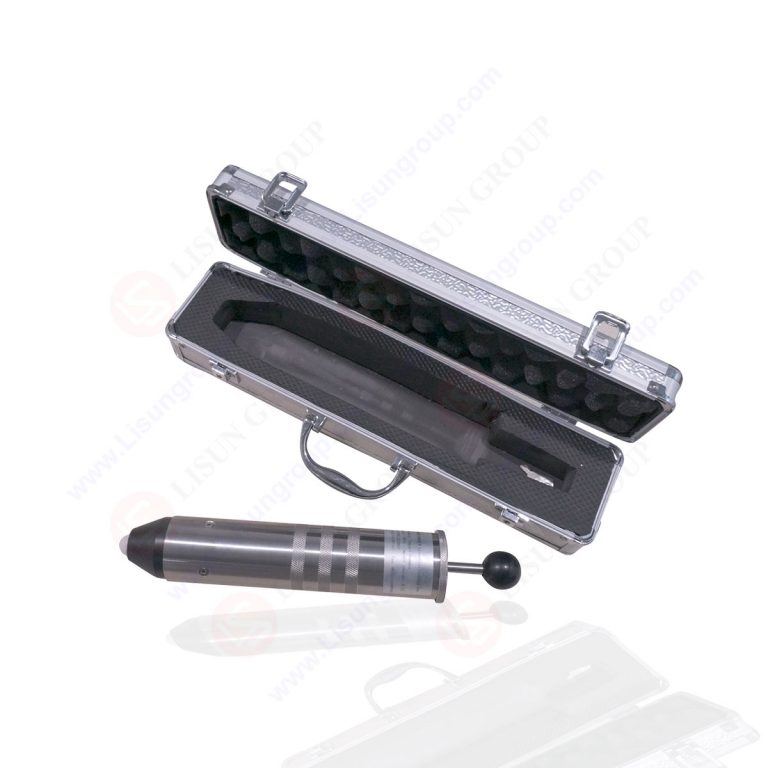

IEC 60068-2-75 Spring Impact Hammer IK Level Tester
Leave a Message
The IEC 60068-2-75 Spring Impact Hammer IK Level Tester is a precision testing instrument engineered for the quantitative evaluation of product enclosure impact resistance in accordance with international standards. This device incorporates a calibrated spring-driven impact mechanism that delivers controlled impact energies corresponding to IK ratings IK01 through IK07, ensuring consistent and repeatable test results for compliance verification.
This tester is specifically designed for mechanical strength assessment of product enclosures, control interfaces, and protective components across multiple industries. Applications include impact resistance testing of:
- LED lighting fixtures and luminaires
- Household appliances and consumer electronics
- Laboratory and measurement equipment
- Medical electrical devices
- Audio/video equipment and appliance couplers
The instrument validates that product enclosures can withstand mechanical impacts encountered during normal use, transportation, and potential misuse scenarios, thereby ensuring operational safety and reliability.
Compliance Standards:
- IEC 60068-2-75:2014 Clause 6 Test Ehb: Spring hammer – Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
- IEC 60598-1:2025 Clause 10 Mechanical strength – Luminaires – Part 1: General requirements and tests
- IEC/EN 61010-1:2010 Clause 7 Mechanical hazards – Safety requirements for electrical equipment for measurement, control, and laboratory use – Part 1: General requirements
- IEC 60065:2021 Clause 9 Mechanical strength – Audio, video and similar electronic apparatus – Safety requirements
- IEC 60320-1:2015 Clause 10 Mechanical strength – Appliance couplers for household and similar general purposes – Part 1: General requirements
- IEC 60335-1:2020 Clause 21 Mechanical strength – Household and similar electrical appliances – Safety – Part 1: General requirements
- IEC 60400:2014 Clause 8 Mechanical strength – Lampholders for tubular fluorescent lamps and starterholders
- IEC/EN 60601-1:2021 Clause 16 Mechanical strength – Medical electrical equipment – Part 1: General requirements for basic safety and essential performance
- IEC 60519-1:2021 Clause 12 Mechanical integrity – Safety in installations for electroheating and electromagnetic processing – Part 1: General requirements
- IEC/EN 61058-1:2017 Clause 10 Mechanical strength – Switches for appliances – Part 1: General requirements
