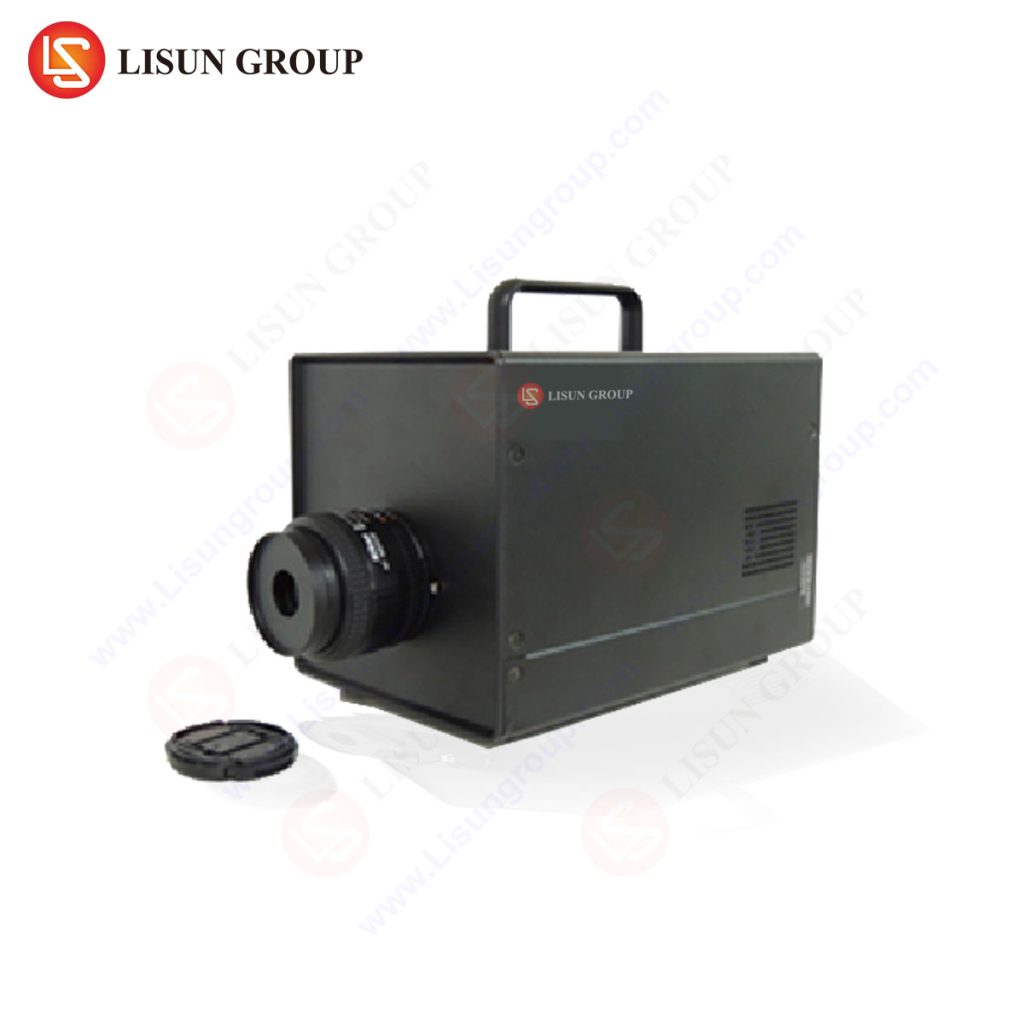

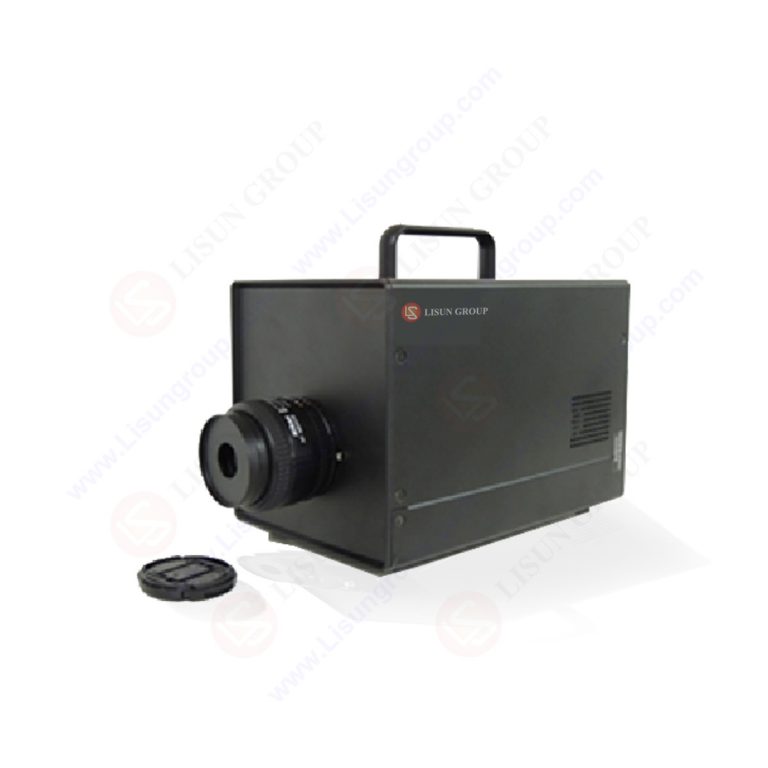

Imaging Luminance Colorimeter
Product No: KS-10
Leave a Message
Description
Features: High dynamic range | Brightness and Chroma | Contrast | Uniformity
- The KS-10 series Imaging Luminance Colorimeter incorporates detectors with resolutions ranging from 2 million to 61 million pixels, delivering superior luminance and chromaticity measurement solutions compliant with IEC 62471 and other photometric standards.
- The integrated standard software provides an optimized productivity environment. All analytical functions, from basic to advanced operations, are efficiently automated for consistent, repeatable results.
- Utilizing semiconductor refrigeration technology capable of reaching -45°C, the system minimizes thermal noise and drift, enabling reliable analysis of weak signals down to 0.0001 cd/m² luminance levels.
- Bandwidth modulation combined with DDR buffer memory ensures rapid data acquisition and processing, even in low-configuration operating environments.
- Supports region of interest (ROI) readout and synthesis for targeted measurement analysis.
- High dynamic range exposure with optional ND filters achieves an extensive measurement range from 0.0001 to 100,000 cd/m².
- Contrast ratio capability reaches 1,000,000:1 for comprehensive display performance evaluation.
Applications: Measurement of displays, instrumentation panels, ambient lighting systems, automotive lighting, roadway illumination, and indoor lighting products in compliance with IEC, UL, GB/T, and ASTM standards.
Click here to access the detailed KS Series Software Manual
Specifications:
| LISUN Model | KS-2 | KS-10 | KS-16 | KS-24 | KS-36 | KS-61 |
|---|---|---|---|---|---|---|
| Detector | 1/1.2” | 4/3” | 4/3” | APS-C | Full Size | Full Size |
| Total pixels | 2.28 million | 11.2 million | 16.21 million | 24.34 million | 36.17 million | 60.92 million |
| Pixel resolution | 1900*1200 | 4100*2732 | 4634*3500 | 6228*4156 | 7338*4930 | 9560*6372 |
| Pixel size | 5.68μm | 4.63μm | 3.8μm | 3.76μm | 4.88μm | 3.76μm |
| Refrigerating system | Secondary refrigeration (as low as -45°C) | |||||
| Dynamic Range | >1,000,000:1 (Multiple exposure or optional ND filter) | |||||
| Pixel depth | 16-bit readout | |||||
| Exposure time | 16 μSec to 60 Sec | |||||
| Spatial measurement functions | Luminance, CIE chromaticity coordinates, color temperature, dominant wavelength, tristimulus value luminance | |||||
| Measure range | 0.0001 to 100,000 cd/m² (Higher with ND filter) | |||||
| Accuracy | ±3% | |||||
| Repeatability(δ) | ±0.5% | |||||
| Chroma | Based on standard… | |||||
