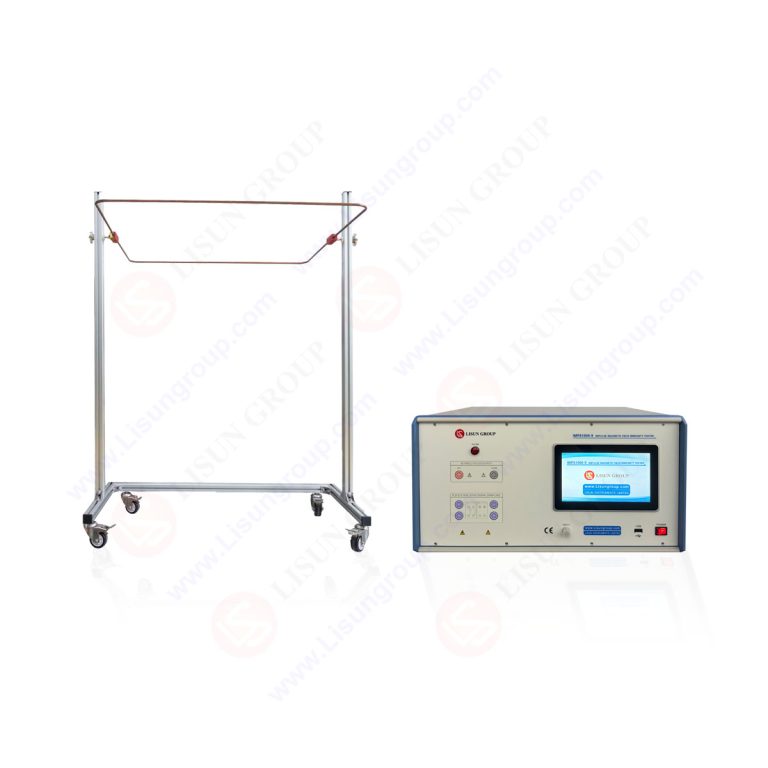

Impulse Magnetic Field Generator

Impulse Magnetic Field Generator

Product No: IMF61000-9

Leave a Message






    captcha

    Description

    The IMF61000-9 Impulse Magnetic Field Generator employs high-voltage pulse discharge technology as its core operational principle. Through precise circuit control and waveform generation, it produces standardized pulse waveforms that are converted into compliant pulsed magnetic fields via a magnetic field coil. This enables accurate simulation of pulsed magnetic field interference across diverse electromagnetic environments, providing controlled test conditions for equipment immunity validation.

    The IMF61000-9 Impulse Magnetic Field Generator is utilized for impulse magnetic field immunity testing per IEC 61000-4-9, EN 61000-4-9, and GB/T 17626.9 standards. Applications include electrical and electronic components, communications systems, industrial control equipment, power electronics, and automotive electronics. This instrument serves third-party testing laboratories, enterprise R&D and quality control departments, and academic research institutions for electromagnetic compatibility testing, interference immunity verification, and compliance certification.

    Standards:

    Standards No. Standards Name
    IEC 61000-4-9:2016 Electromagnetic compatibility (EMC) – Part 4-9: Testing and measurement techniques – Impulse magnetic field immunity test
    EN 61000-4-9:2016 Electromagnetic compatibility (EMC) – Part 4-9: Testing and measurement techniques – Impulse magnetic field immunity test
    GB/T 17626.9-2025 Electromagnetic compatibility – Testing and measurement techniques – Part 9: Impulse magnetic field immunity test

    Specifications:

    Model IMF61000-9 IMF61000-9A
    Output Current 100~1,200 A/m ±10% 100~3,000 A/m ±10%
    Short-circuit Current Waveform 6.4 μs ±30%, 16 μs ±30% 6.4 μs ±30%, 16 μs ±30%
    Open Circuit Voltage Waveform 1.2 μs ±20%, 50 μs ±20% 1.2 μs ±20%, 50 μs ±20%
    Output Impedance 2 Ω ±0.25 Ω 2 Ω ±0.25 Ω
    Output Polarity Positive, negative, automatic Positive, negative, automatic
    Phase Angle 0~360° 0~360°
    Number of discharges 1~9,999 times 1~9,999 times
    Discharge Interval 5~9,999 s 5~9,999 s
    Magnetic Field Coil 1×1 m single-turn coil 1×1 m single-turn coil
    Control System 10-inch Android touchscreen (Chinese/English) 10-inch Android touchscreen (Chinese/English)
