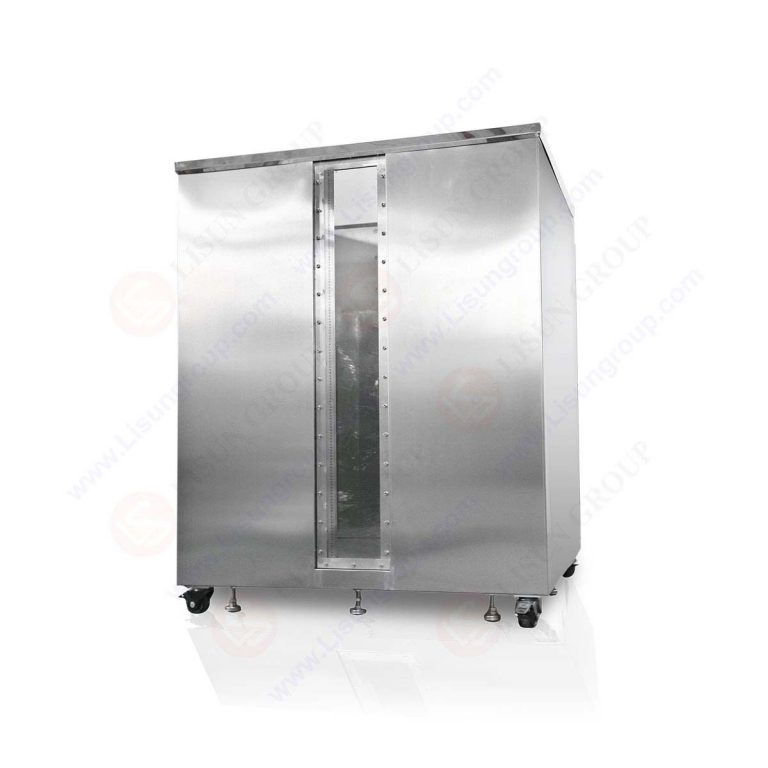

IP Enclosure Protection Test Equipment (Open-Type Configuration)

IP Enclosure Protection Test Equipment (Open-Type Configuration)

Product No: JL-X

Leave a Message






    captcha

    Description

    The JL-X series Enclosure Protection Test Equipment (open-type configuration) performs comprehensive verification of waterproof integrity for electronic and electrical equipment enclosures. By simulating ingress protection conditions across standardized environmental parameters, this system validates enclosure protective capabilities against water exposure scenarios including precipitation, directional spray, and immersion.

    The JL-X enclosure protection test system provides complete testing coverage for IP code classifications: IPX1 (vertical dripping), IPX2 (15° tilted dripping), IPX3 (spraying water), IPX4 (splashing water), IPX5 (jetting water), IPX6 (powerful jetting water), IPX7 (temporary immersion), and IPX8 (continuous immersion). This equipment enables comprehensive testing from basic dripping resistance to high-pressure water jet and deep immersion validation, ensuring enclosure integrity prevents water ingress to protect internal circuitry and components.

    During testing procedures, the system simulates critical environmental parameters including precipitation intensity, spray angle distribution, and immersion depth according to product application requirements. This enables accurate assessment of enclosure protective effectiveness, allowing manufacturers to identify design deficiencies prior to production and ensure compliance with international market access requirements.

    Compliance Standards

    • IEC 60529:2013 – Degrees of protection provided by enclosures (IP code)
    • IEC 60598-1:2024 – Luminaires – Part 1: General requirements and tests
    • IEC 60034-5:2020 – Rotating electrical machines – Part 5: Degrees of protection provided by the integral design (IP code) – Classification
    • VDE 0470-1 – Testing of enclosures for electrical equipment (IP code)
    • GB/T 4208-2017 – 外壳防护等级（IP 代码）
    • GB/T 7000.1-2023 – 灯具 第 1 部分：一般要求与试验

    Technical Specifications

    • Drip Test Chamber (Model JL-12): Validates IPX1 and IPX2 protection levels per IEC 60529 Clause 14.2.1-14.2.2 requirements…

    Frequently Asked Questions

    Where is LISUN based and what is your global reach?

    We are based in Shanghai, China, founded in 2012. Our products are sold to Western Europe (25%), North America (20%), Eastern Europe (15%), South America (10%), Domestic Market (5%), and other regions. We have 51–100 employees.

    How do you guarantee product quality?

    We always provide a pre-production sample before mass production and conduct a final inspection before shipment.

    What products can I buy from LISUN?

    Goniophotometer, Integrating Sphere, Temperature Chamber, EMI Receiver, Surge Generator, and more.

    Why should I choose LISUN over other suppliers?

    LISUN is a leader in lighting and electrical test instruments, founded in 2003. All products are ISO9001:2015 certified and CE certified. LISUN is a CIE member, and our products have been sold to over 150 countries.

    What services and payment terms do you offer?

    Delivery terms: FOB, CFR, CIF, EXW, DDU. Payment currencies: USD, EUR, CNY. Payment types: T/T, L/C, Credit Card, PayPal, Cash, Escrow. Languages: English, Chinese, Spanish, Arabic, Russian.
