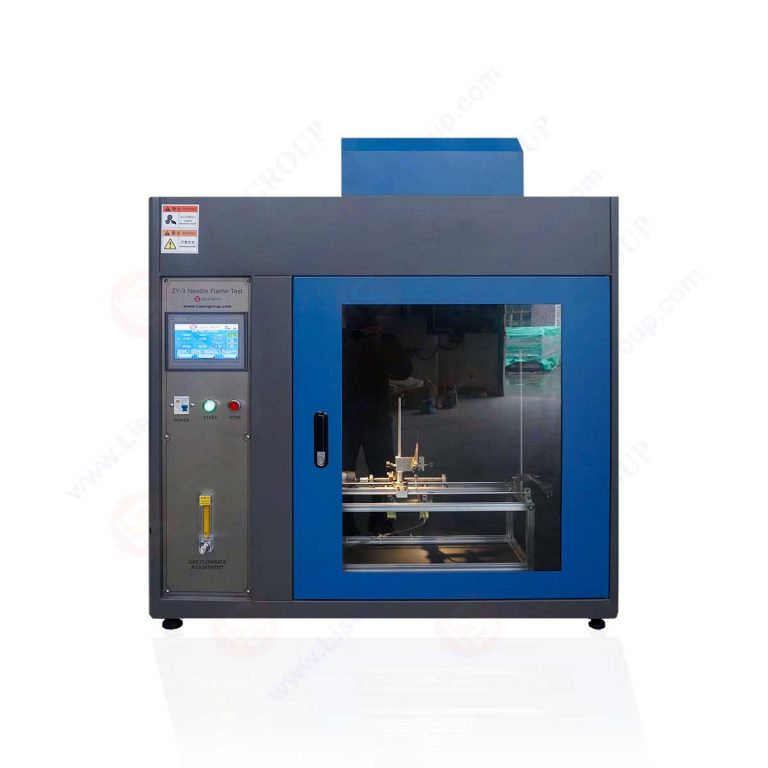

Needle Flame Test Apparatus

The ZY-3 Needle Flame Tester is a fire safety testing instrument engineered for electrical and electronic devices, home appliances, lighting, and IT equipment. It replicates ‘micro-flames’ caused by internal faults like short circuits and overheating, assessing flame resistance and fire safety of products and insulation materials. Utilizing a standard needle burner, it precisely measures ignition, combustion duration, and flame spread. This device delivers test data in accordance with international and domestic standards for product development, quality inspection, and certification, aiding companies in meeting fire safety requirements. The ZY-3 features a modular design with precise temperature control, automatic timing, and data logging. Key parameters such as flame temperature rise rate and flame height adhere strictly to standard requirements. An intuitive touchscreen and dual remote control modes enhance the testing process while ensuring safety. It accommodates various specimen sizes, catering to electronic and electrical manufacturers, testing facilities, and research institutes.

Standards:

• IEC 60695-11-5:2016 Fire hazard testing – Part 11-5: Test flames – Needle-flame test method – Apparatus, confirmatory test arrangement and guidance
• IEC 60695-2-2:2004 Fire hazard testing – Part 2-2: Test flames – Needle-flame test method – Apparatus, confirmation test methods and guidance (Replaced by IEC 60695-11-5:2016)
• GB/T 5169.5-2020 Fire hazard testing for electrical and electronic products – Part 5: Test flames – Needle-flame test method – Apparatus, confirmation test methods and guidance

Specifications:

• LISUN Model ZY-3 / ZY-3S
• Product Name: With Cabinet / Without Cabinet
• Burner Angle: Adjustable, 45° tilt during testing, vertical for flame height calibration.
• Burner Time: 0~999.9s (±0.1s), 30s recommended,…
