Pendulum Impact Test Device

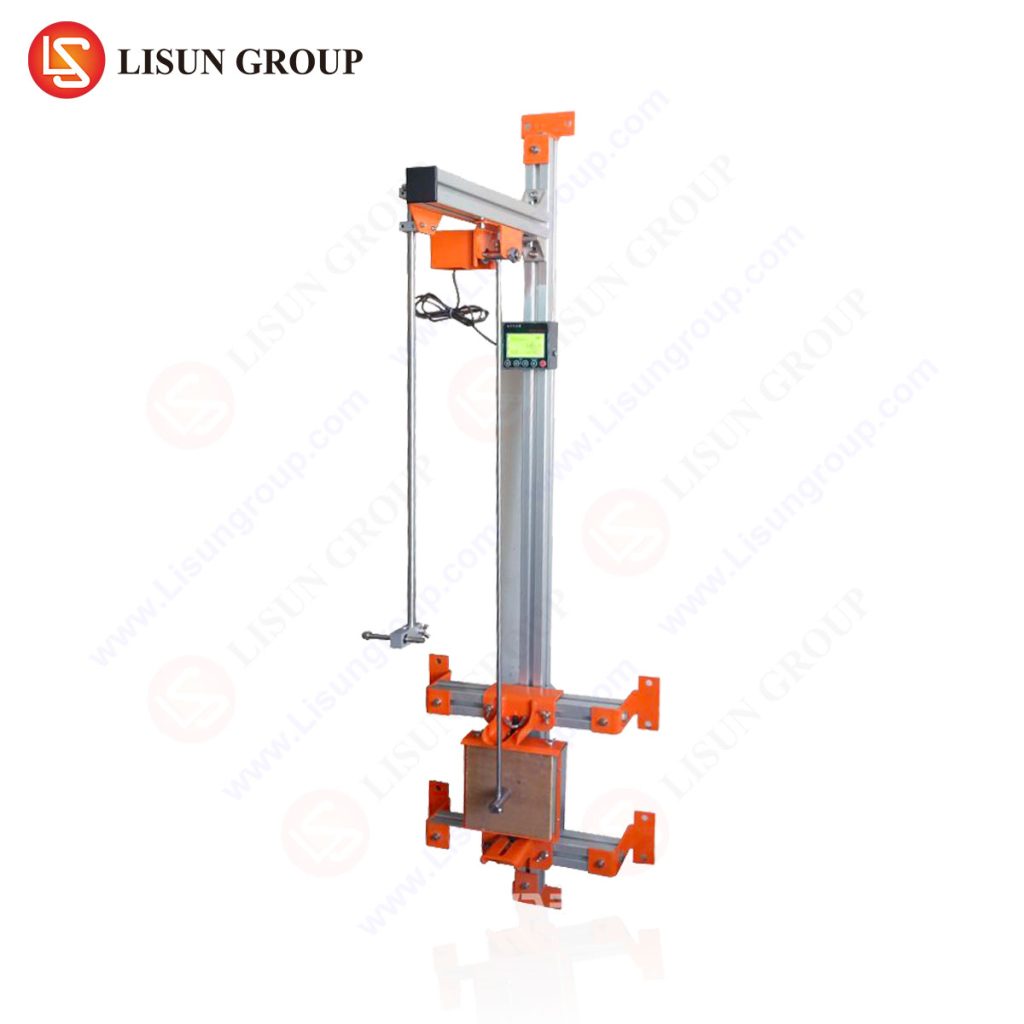

The IK01-06P small pendulum impact tester is engineered to simulate pendulum-style mechanical impacts encountered by products during transportation, installation, and operational use, providing precise assessment of impact resistance for housings and structural components. The device incorporates an integrated mechanical structure with a high-rigidity swing arm, delivering consistent impact energy that conforms to international standards (covering IK01 through IK06 protection ratings).

The system features an LCD display for real-time monitoring of impact angle and height parameters. Impact height is calculated with precision based on pendulum arm length and angular displacement, with adjustable settings to accommodate any required test height. This ensures that impact angle accuracy, impact point precision, and energy repeatability meet the stringent requirements specified in applicable testing standards.

The IK01-06P small pendulum impact tester is designed for vertical mounting on solid structural surfaces, with an adjustable mounting bracket providing forward/backward and left/right positioning capabilities for optimal test setup.

Compliance Standards:

• IEC 60068-2-75:2014 Clause 5 Test Eha: Pendulum impact for low energy levels – Environmental testing – Part 2-75: Tests – Test Eh: Hammer tests
• IEC 60669-1:2020 Clause 20.1: Pendulum impact test for switches – Switches for household and similar fixed electrical installations – Part 1: General requirements
• VDE 0620-1:2022 Clause 9.4: Pendulum impact resistance test – Fixed electrical installations in buildings – Part 1: General requirements, definitions, dimensions, clearances and creepage distances
• IEC 60669-2-1:2021 Clause 18.1: Pendulum impact test for specific switches – Switches for household and similar fixed electrical installations – Part 2-1: Particular requirements for switches for alternating current (AC)
• GB/T 2423.55-2023 Test Eha Clause 4.2.1: Pendulum impact test device requirements – Environmental testing – Part 2: Test methods – Test Eh: Hammer tests
• GB/T 2099.1-2021 Clause 24.2: Pendulum impact test – Plugs and socket-outlets for household and similar purposes – Part 1: General requirements
• GB/T 16915.1-2022 Clause 10.2: Pendulum impact verification – Switches for household and similar fixed electrical installations – Part 1: General requirements
• GB/T 10979-2021 Clause 8.3: Pendulum impact test – Safety requirements for household and similar electrical irons
• GB/T 17466.1-2019 Clause 15.4: Pendulum impact detection – Automatic electrical controls for household and similar use – Part 1: General requirements
• GB/T 16915.2-2022 Clause 9.2: Pendulum impact test – Switches for household and similar fixed electrical installations – Part 2: Particular requirements
