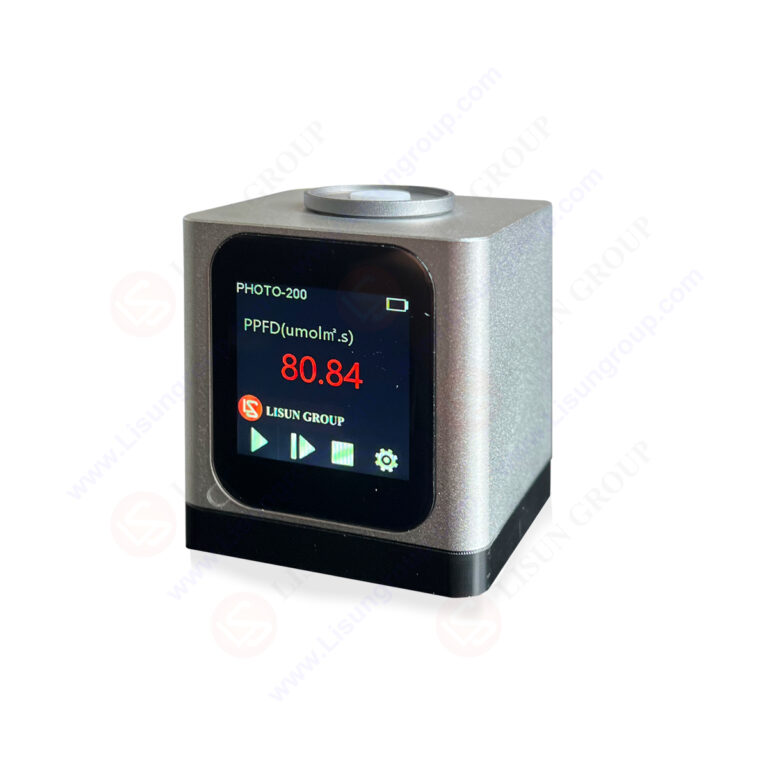

PHOTO-200 Series Photometric Measurement Instrument

PHOTO-200 Series Photometric Measurement Instrument

Product No: PHOTO-200

Leave a Message






    captcha

    Description

    The PHOTO-200 Series Photometric Measurement Instrument employs high-precision linear optoelectronic sensors that deliver Class A accuracy (±4% reading ±1 digit) in accordance with IEC 60904-9 standards. This instrument features lightweight construction, exceptional measurement stability, high accuracy, and portability for field deployment.

    Applications include on-site lighting assessment, light source research and development, production line quality control per ISO 9001 requirements, and plant factory monitoring. Technical specifications include: Detector Accuracy Class A (±4% reading ±1 digit), Reproducibility ±0.5%, Touch screen display with 180-degree rotation capability, USB and Bluetooth communication interfaces, Type-C charging port, 1600mAh lithium battery providing 12 hours continuous operation, Compact dimensions (65mm×60mm×60mm), Aluminum alloy housing weighing 100g, and support for secondary development.

    Available configurations:

    • PHOTO-200 Pocket Illuminance Meter: Illuminance measurement range 0.1-500,000lx (380-780nm) with ±0.1lx resolution. Features include upper/lower limit settings, sorting tests, optical change curve analysis via PC software, and measurement of illuminance, average illuminance, maximum/minimum illuminance, point illumination, and transmission percentage.
    • PHOTO-200L Pocket Brightness Meter: Brightness measurement range 0.1-500,000cd/m² (380-780nm) with ±0.1cd/m² resolution. Includes upper/lower limit settings, sorting tests, light change curve analysis via PC software, and measurement of brightness, average brightness, maximum/minimum brightness, points brightness, and brightness transmission.
    • PHOTO-200P PPFD Sensor and Lux Meter: Simultaneous measurement of illuminance (lx) and PPFD (0.1-500,000μmol/m²·s, 400-700nm) with ±0.01μmol/m²·s resolution. Features include upper/lower limit settings, sorting tests, optical change curve analysis via PC software, and measurement of PPFD, average PPFD, maximum/minimum PPFD, energy, transmission ratio, and testing time.
    • PHOTO-200DLI PPFD Sensor (DLI): PPFD measurement range 0.1-500,000μmol/m²·s (400-700nm) with ±0.01μmol/m²·s resolution.
