Photovoltaic Impulse Voltage Generator
Leave a Message

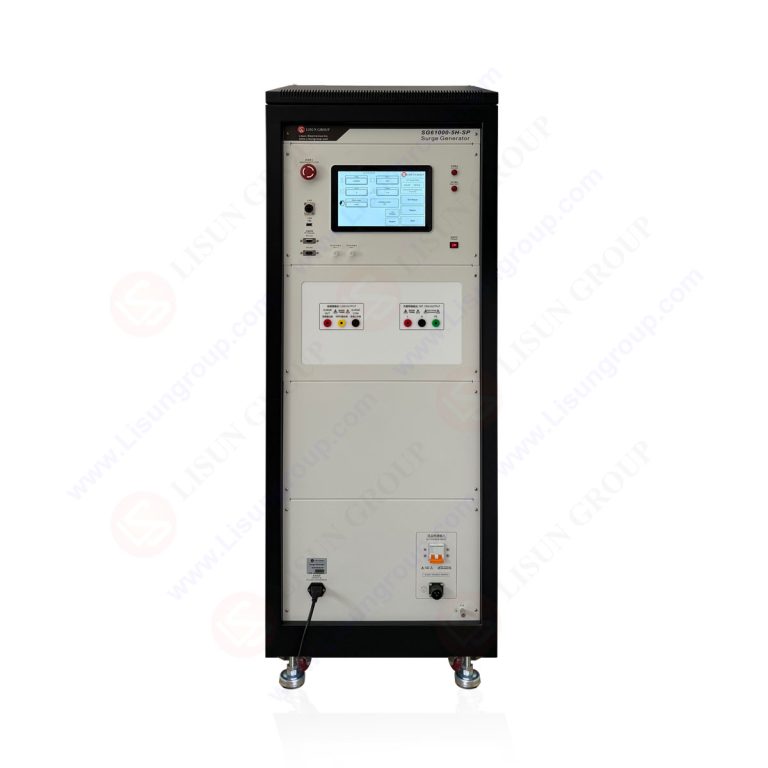

The SUG1250-30KV photovoltaic module impulse voltage generator is engineered to fully comply with the technical requirements of IEC 61730-2:2023 Clause 10.12 MST 14 (GB/T 20047.2), IEC 60060-1 (GB/T 16927.1), and IEC 61730-1 (GB/T 20047.1) standards. This instrument delivers precise 1.2/50μs impulse voltage waveforms for photovoltaic panel testing across a capacitance range of 15nF to 150nF.
Key features include an integrated voltage waveform probe for real-time peak voltage monitoring, a large-format LCD touchscreen interface for operational efficiency, and comprehensive testing capabilities. The system supports multiple polarity configurations and automated testing sequences to meet rigorous laboratory requirements.
Technical Specifications
| Model | SUG1250-30KV | SUG1250-15KV |
|---|---|---|
| Test Voltage Range | 3~30kV±3% | 3~15kV±3% |
| Voltage Waveform | 1.2μs±30%/50μs±20% | |
| Wave Network | Depending on the load capacitance | |
| Output Polarity | Positive, negative, positive and negative alternating | |
| Interval Time | 8~9999s | |
| Number of Testings | 1~9999 | |
| Trigger Mode | Manual, automatic, external | |
| Capacitance Range | 15~150nF (9 gears) | |
| Compliance Standard | IEC 61730-2:2023 Clause 10.12 MST 14 | |
| Circuit Principle | Standard impulse voltage generation circuit | |
Tags: SUG1250-30KV, photovoltaic testing equipment, impulse voltage testing
