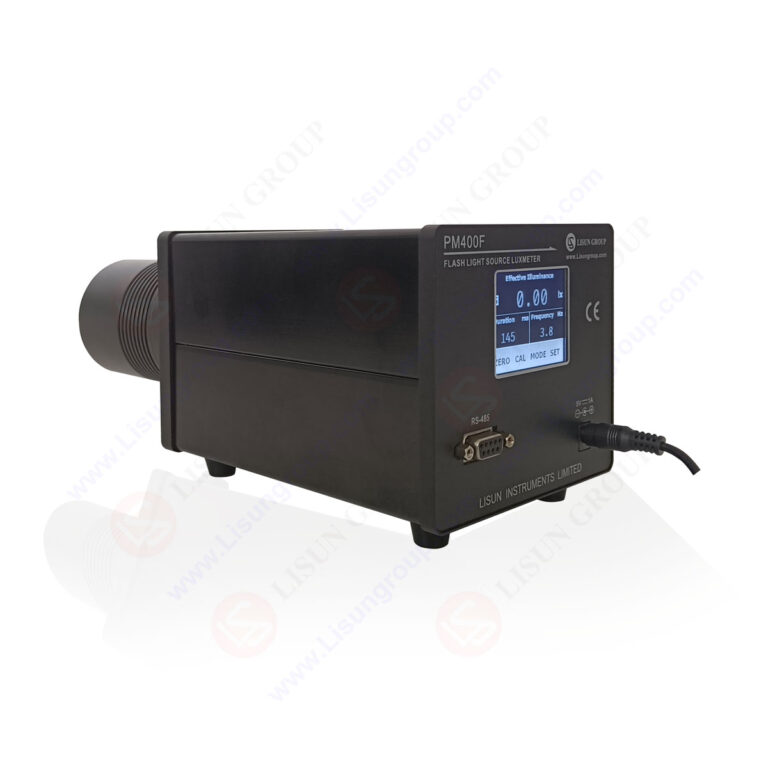

PM400F Flashlight Photometer

PM400F Flashlight Photometer is a precision instrument engineered for photometric measurement of transient light sources. Utilizing a 16-bit high-speed analog-to-digital converter to capture flashlight output signals, the integrated microprocessor analyzes and calculates continuous time, flash frequency, effective light intensity, instantaneous maximum and minimum light intensity, and average light intensity parameters. View the PM400F Flashlight Photometer test report sample. This instrument is specified for effective light intensity measurement of traffic warning lights, aviation obstruction lights, aircraft anti-collision lights, and navigational lights, and is also applicable for pulse light sources including illumination rounds, signal flares, pulsed LEDs, and pyrotechnics in instantaneous photometric characterization.

Compliance Standards:

• MH/T 6012-1999 – Aviation Obstruction Light
• HB6490-1991 – General Specifications for Aircraft Navigation Light and Anti-collision Light
• JTT 761—2022 – General Technical Conditions for Aids to Navigation Light
• ECE R65 – Uniform Provisions Concerning The Approval of Special Warning Lamps for Motor Vehicles
• SAE J595 – Directional Flashing Optical Warning Devices for Authorized Emergency, Maintenance, and Service Vehicles
• SAE J845 – Optical Warning Devices for Authorized Emergency, Maintenance, and Service Vehicles
• JJF1330-2011 – Calibration Specification for Transient Effective Luminous Intensity Meter

Technical Features:

• Integrated 16-bit analog-to-digital converter with 1 MHz sampling rate; capacity for 200 million measurable and displayable sampling points
• Advanced microprocessor architecture with enhanced electromagnetic interference immunity
• High-precision photometric detector with spectral response matched to CIE photopic luminosity function, meeting Class 1 requirements per national standards
• Waveform compatibility extends beyond square waves to accommodate diverse signal profiles
• Support for … (truncated)
