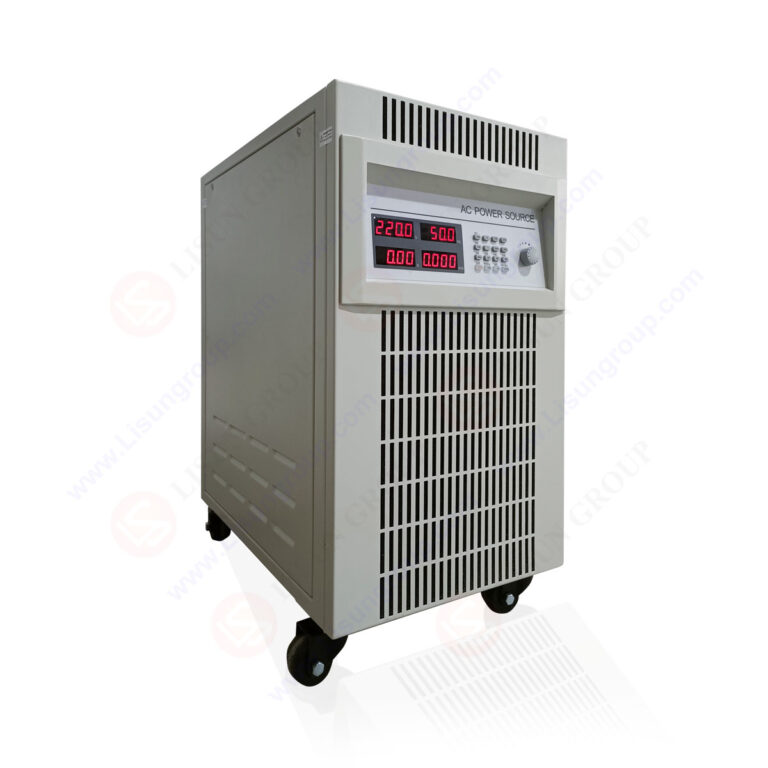

PWM Type AC Power Supply

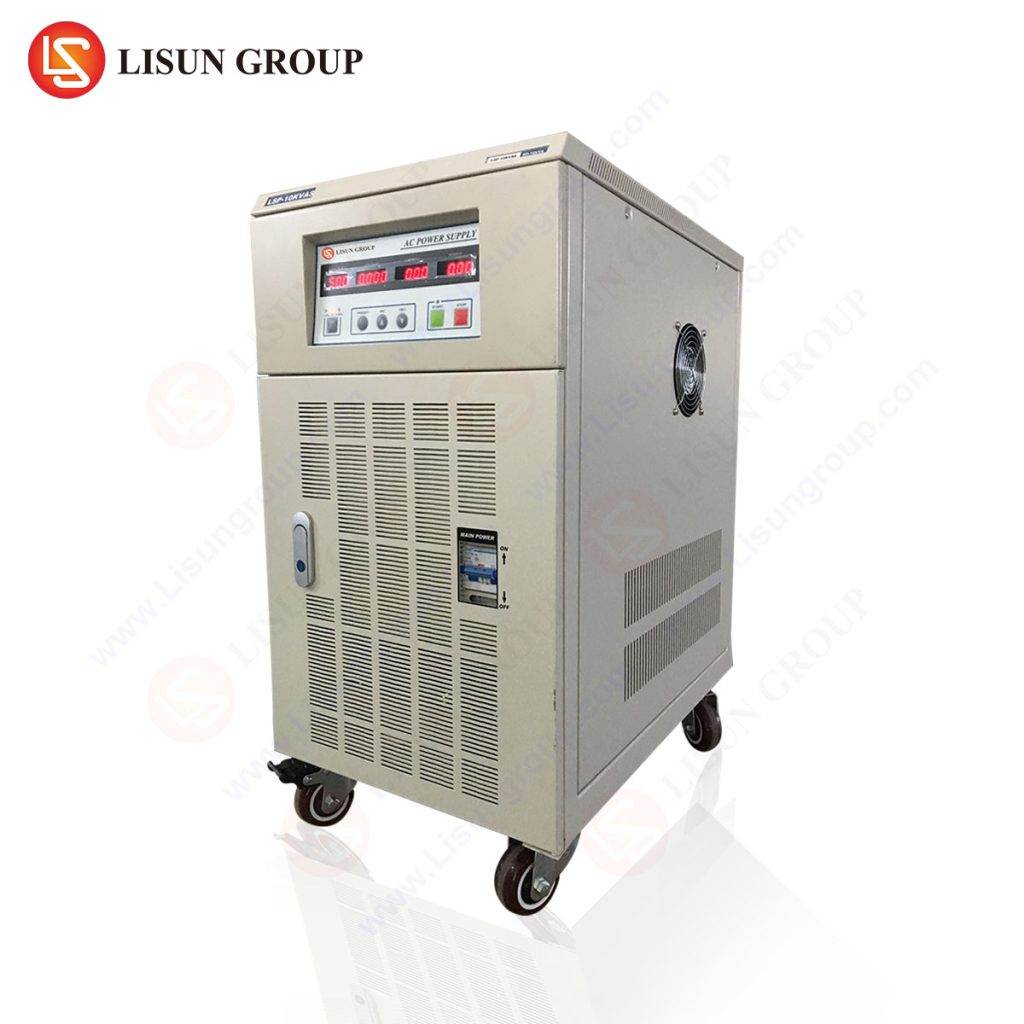

The LSP-5KVAS PWM Type AC Power Supply features ultra-low output voltage total harmonic distortion (THD) and configurable output current protection thresholds. Engineered for compliance testing in accordance with IEC 61000-4-11 for voltage dips, short interruptions, and voltage variations immunity, this unit is specifically developed for testing applications in the home appliance, electric motor, and compressor industries. It serves as a high-performance replacement for conventional voltage regulators and frequency converters, delivering efficient, cost-effective, and precise testing solutions. The unit is equipped with four-wheel mobility for convenient relocation between laboratory environments.

Single-Phase Output Configuration:
Order Models: LISUN Model LSP-3KVAS, LSP-5KVAS, LSP-10KVAS, LSP-15KVAS, LSP-20KVAS, LSP-30KVAS, LSP-45KVAS, LSP-60KVAS
Output Power: 3KVA, 5KVA, 10KVA, 15KVA, 20KVA, 30KVA, 45KVA, 60KVA
Dimensions (W×H×D in mm): 350×635×530, 470×875×700, 530×1010×800, 600×1210×900
Circuit Topology: IGBT-based Sinusoidal Pulse Width Modulation (SPWM)
Input Specifications: Single Phase, 220V±10%, 50/60Hz; Three Phase, 380V±10%, 50/60Hz
Voltage and Power Output: Single Phase, Low Range: 0~150V / High Range: 0~300V (Phase to Line), Accuracy: ≤±(0.2%+0.2%FS)
Current Output (0~150V Range): 27A, 45A, 90A, 136A, 182A, 272A, 408A, 544A
Current Output (150~300V Range): 13.5A, 22.5A, 45A, 68A, 91A, 136A, 204A, 272A

Three-Phase Output Configuration:
Order Models: LISUN Model LSP-15KVAST, LSP-30KVAST, LSP-45KVAST, LSP-60KVAST, LSP-90KVAST, LSP-120KVAST, LSP-150KVAST, LSP-180KVAST
Output Power: 15KVA, 30KVA, 45KVA, 60KVA, 90KVA, 120KVA, 150KVA, 180KVA
Dimensions (W×H×D in mm): 600×1135×1010, 700×1385×1240, 750×1445×1385, 800×1845×1400
Circuit Topology: IGBT-based Sinusoidal Pulse Width Modulation (SPWM)
Input Specifications: Three Phase, 380V±10%, 50/60Hz
Voltage and Power Output: Three Phase, Low Range: 0~150V / High Range: 0~300V (Phase to Phase), Accuracy: ≤±(0.2%+0.2%FS)
Current Output (Low Range): 27A, 45A, 90A, 136A, 182A, 272A, 408A, 544A
Current Output (High Range): 13.5A, 22.5A, 45A, 68A, 91A, 136A, 204A, 272A

Ordering Notes:
1. Units can be custom-configured for specific regional voltage standards. For example, model LSP-10KVASUS denotes a Single-Phase input and Single-Phase output configuration with both input and output rated at 110V±10%.
2. For Three-Phase configurations, model LSP-15KVASUST denotes Three-Phase input and Three-Phase output with both input and output rated at 220V±10%.

Specifications:
Output Frequency Range: 40~70Hz (Adjustable)
Frequency… (truncated)
