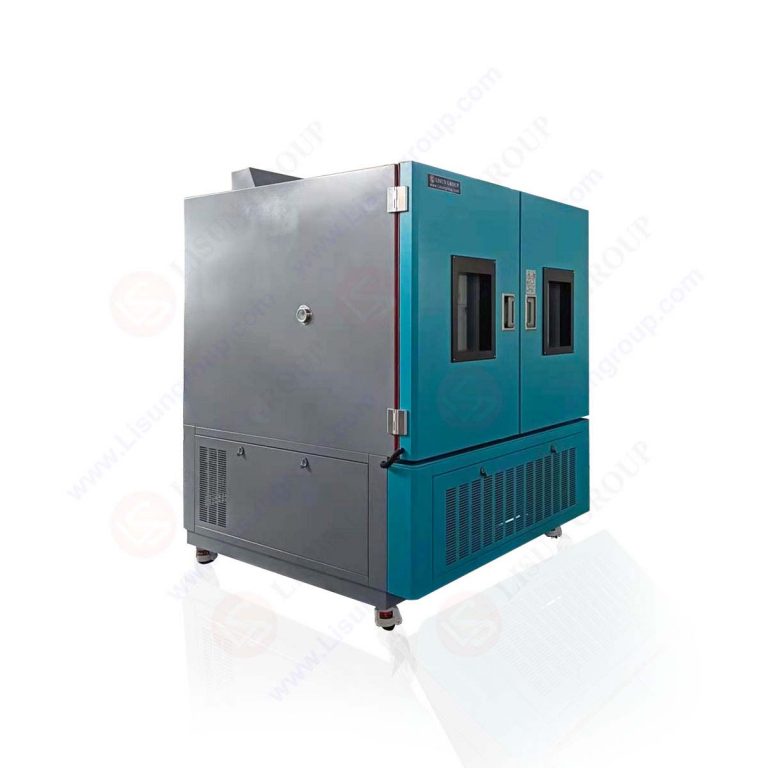

Rapid Temperature Change and Humidity Test Chamber
Product No: KWB-054D
Leave a Message
Description
The rapid temperature change and humidity test chamber is designed for precise temperature and humidity control, suitable for aerospace products, electronic instruments, and various electronic components under rapid temperature change conditions.
- Working size: 1800×1500×2000mm (D*W*H) with accuracy of ±5mm; Overall dimension: 1850×1800×3300mm (D*W*H)
- Temperature range: -67~100℃; Temperature fluctuation: ≤±0.5℃; Temperature uniformity: ≤±2℃; Temperature deviation: ≤±2℃
- Heating rate: -55℃ to +85℃ at approximately 6℃/min (average, with aluminum ingot load 350kg, calorific value 2230W)
- Cooling rate: +85°C to -55°C at approximately 6°C/min (average, with aluminum ingot load 350kg, calorific value 2230W)
- Humidity range: 20~95%R.H; Humidity fluctuation: ≤±3%RH; Humidity deviation: ≤-3% to +2%RH (humidity>75%RH), ≤±5%RH (humidity≤75%RH)
- Power supply: 3 phases, 380V 50/60HZ
- Temperature control accuracy: ±0.1℃
- Display resolution: time: 0.1min, temperature: 0.1℃, humidity 0.1%RH
- Controller: Qingrui TMEI990, 7-inch LCD touch screen
- Noise level: ≤75dB
- Observation window: 300x400mm tempered heat-resistant insulating glass
- Compressor cooling method: water cooling
- Total power: 60KW (30KW for heating, 9KW for humidification, 21KW for cooling); Maximum current: 120A
- Compressor: BITZER 14HP/set X2 sets
- Humidity Sensor: Vaisala Electronic
- Chiller: 20P (optional)
