RF Signal Generator | Frequency Synthesizer

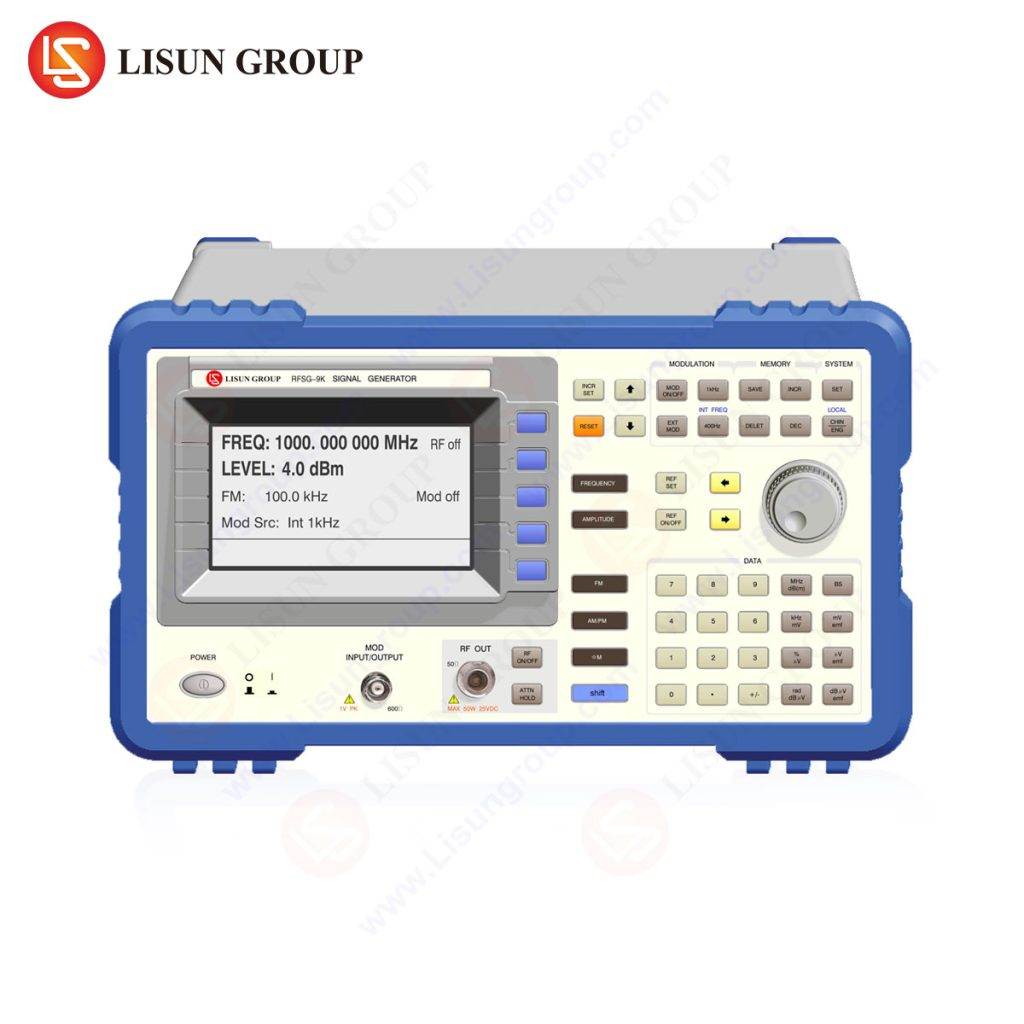

The RFSG-9KC RF Signal Generator utilizes advanced fractional-N frequency division technology and a single-loop frequency synthesis method, providing a frequency resolution of 1 Hz while maintaining superior spectral performance. It spans a frequency range of 9 kHz to 4000 MHz with a power level range from -127 dBm to +13 dBm. This represents a new generation of high-performance RF Signal Generators. The RFSG-9KC incorporates medium- to large-scale integrated circuits and high-performance programmable logic devices, enhancing design efficiency, reducing power consumption, and ensuring light weight and high reliability. It offers comprehensive functionality, high precision, dependable performance, and user-friendly operation, fulfilling the requirements of sectors such as defense, scientific research, and telecommunications for synthesized signal generators. Feature: • Utilizes Σ-Δ modulation single-loop fractional frequency synthesis technology • Employs Surface Mount Technology (SMT) • Equipped with a large screen menu with selectable English interface • Features settings storage and recall functionality • Standard RS232 interface, optional USB and GP-IB interfaces • High reliability: MTBF ≥ 10,000 hours Specification: LISUN Model RFSG-9KC RFSG-9KD RFSG-9KE RFSG-9KF Frequency Range 9kHz~1003MHz 9kHz~2002MHz 9kHz~3002MHz 9kHz~4000MHz Resolution 1 Hz Frequency aging rate 1×10^-9/Day RF Output Level (typical) ≤100kHz -127dBm~+8dBm ≤1000MHz -127dBm~+13dBm ≤3002MHz -115dBm~+10dBm ≤3600MHz -115dBm~+7dBm ≤4000MHz -110dBm~+5dBm RF Power Resolution 0.1dBm Reverse Power (50Ω load) Maximum burnout resistance 15W Spectral Purity (typical) Harmonics (output≤+4dBm): <-30dBc Non Harmonics (output≤+4dBm): ≤3002MHz < -50dBc ; ≤4000MHz < -45dBc Subharmonics (output≤+4dBm): <2008MHz < -50dBc; <3002MHz < -40dBc; ≤ 3600MHz < -32dBc Pulse Modulation (Optional) Rise/fall time: <15ns. On/Off: >70dB (≤4000MHz) and >80dB (≤2000MHz) VSWR (fc>300kHz, output<-6dBm, typical) <1003...
