SG61000-5-TVS Semiconductor TVS Surge Generator
Leave a Message

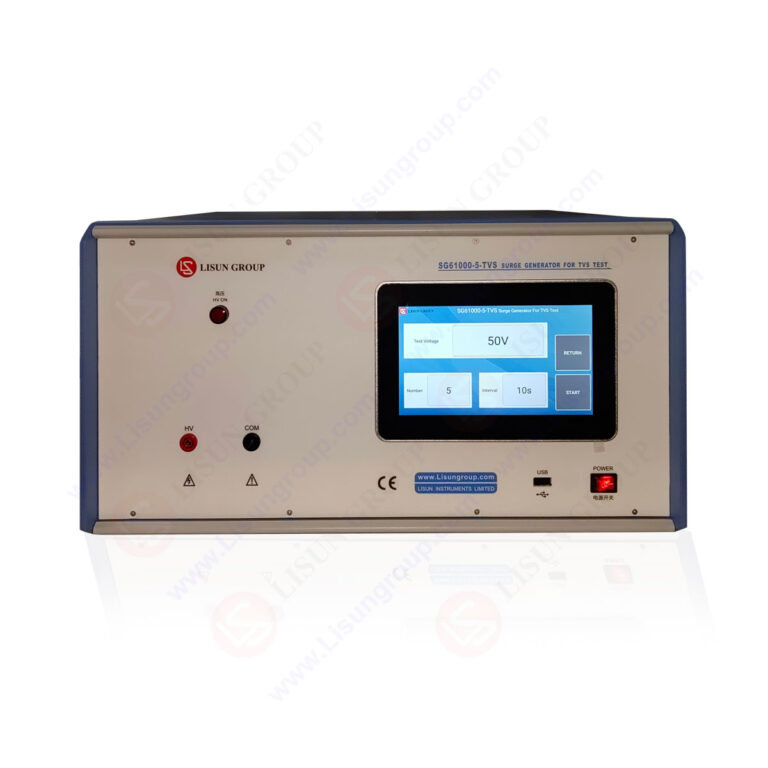

The SG61000-5-TVS semiconductor TVS surge generator precisely simulates high-energy transient interference resulting from natural lightning phenomena and switching operations of large-capacity inductive and capacitive loads. This instrument is engineered specifically to evaluate the surge withstand capability of clamping components including TVS diodes and discharge diodes under standardized current surge conditions, providing a reliable foundation for surge resistance verification of electronic components.
This device integrates practical functionality with operational efficiency, featuring integrated voltage and current attenuators that enable direct waveform observation via oscilloscope. Equipped with an intelligent programmable high-voltage power supply and comprehensive high-voltage overvoltage, overcurrent, and short-circuit protection mechanisms, it ensures secure and stable testing operations. Furthermore, the system incorporates an LCD touchscreen interface and embedded Android operating system for enhanced operational convenience and testing efficiency.
Compliance Standards
| Standards No. | Standards Name |
| IEC 61000-4-5 | Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test |
| IEC 60801-5 | Information technology equipment – Immunity to surge voltages |
| GB/T 17626.5 | Electromagnetic compatibility – Testing and measurement techniques – Surge (impulse) immunity test |
| GB/T 24338.5 | Information technology equipment – Immunity – Part 5: Surge immunity test |
Technical Specifications
| Categories | Specific Parameters |
| Surge Waveform | Open-circuit voltage waveform: 1.2/50μs ± 30%; Short-circuit current waveform: 8/20μs ± 20% |
| Output Voltage | 2~1000V ± 10% |
| Output Current | 1A~500A |
| Output Impedance | 2Ω, 12Ω and 40Ω |
| Output Polarity | Positive, negative, and fully automatic modes |
| Surge Count | 1~9,999 cycles |
| Impact Interval Time | 5~9,999 seconds |
| Coupling Method | 1. Capacitor/Inductor; 2. Capacitor/Diode; 3. Diode/Inductor; 4. Diode/Diode |
Typical Applications
- Electronic Component Manufacturing Industry: Factory testing of clamping components including TVS diodes (transient voltage suppressor diodes), discharge tubes, and varistors for product qualification screening to ensure component surge withstand capability.
