Surge Waveform Monitoring Instrument

Name: Surge Waveform Monitoring Instrument
Brand: LISUN

Product No: SG-M10

Leave a Message

Description

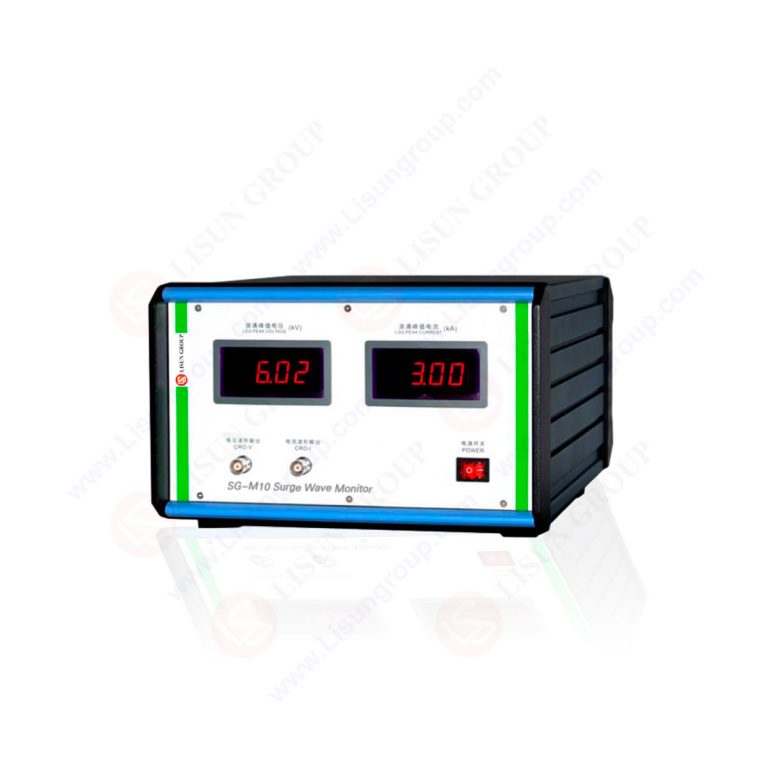

The SG-M10 Surge Waveform Monitoring Instrument incorporates integrated surge voltage and current probes. When connected to the LISUN OSP1102 Digital Oscilloscope, it enables real-time monitoring of Surge Generator SG61000-5SA/SB and SG61000-5NA/NB output waveforms, including 1.2/50μs and 8/20μs surge pulses. The system provides real-time display of surge peak voltage and peak current parameters, along with real-time monitoring of equipment under test (EUT) breakdown voltage and breakdown current characteristics. This functionality enhances surge test process visibility and facilitates diagnostic analysis.

Engineered for compliance with surge waveform specifications defined in GB/T 17626.5 and IEC 61000-4-5 standards. Delivers measurement results with high accuracy and stable performance characteristics.

Standard:
IEC 61000-4-5/EN61000-4-5/GB/T17626.5 “Electromagnetic compatibility (EMC) – Part 4-5: Testing and measurement techniques – Surge immunity test

Maximum peak voltage	±10kV ±10％
Maximum peak current	±5kA ±10％
Voltage attenuation ratio	1000:1
