UL 1598 Water Spray Test Device

The UL Water Spray Test Device fully complies with UL 60507-ENGL 1999 Figures 38.1 and 38.2, ANSI Z21.58 Clause 5.23.1 Figures 12 and 13, and the CSA 4.3-2004 standard. It adheres to UL 1598 Clause 19.17 Figures 19.17.1 and 19.17.2, as well as UL 153, UL 154B, UL 1703, UL 8750, UL 1741, UL 514B, UL 1278, and UL 1571 standards. The equipment includes standard test options, allowing selection of required test items without additional setup. Custom test options enable independent parameter settings for diverse sample testing.

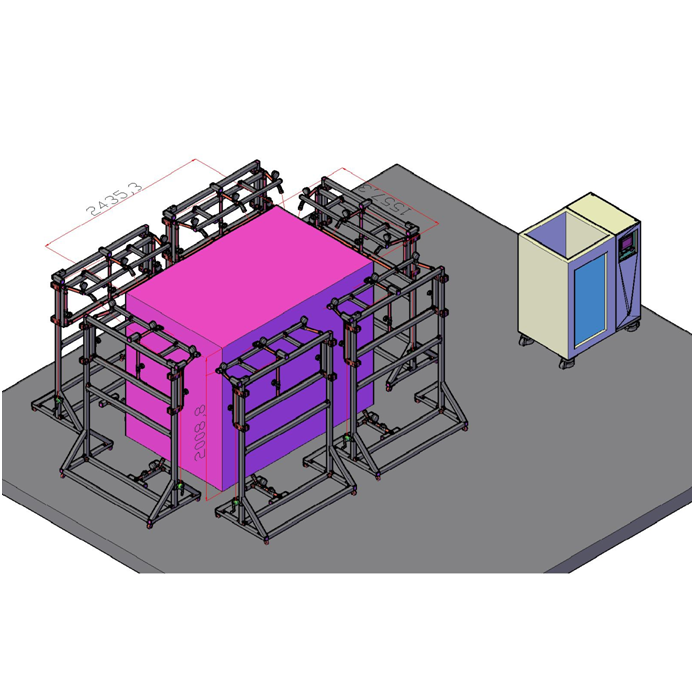

Structure: • This system comprises a water supply control box (with water tank) and six UL spray devices, designed for a comprehensive waterproof testing chamber. • The water supply control box and spray devices are positioned separately. After sample placement, the operator can initiate the test from the control panel, ensuring a safe distance from the apparatus for enhanced personal safety. • Water hoses distribute water from the supply system to each spray device, ensuring an orderly and aesthetically pleasing setup.

Specification: • Suitable for UL rain and 45° spray tests. • Each unit consists of two parts: the UL rain test device (three UL nozzles on top) and the spray test device (one UL nozzle on the bottom). • The nozzle frame is constructed from molded aluminum, offering a stable structure and easy cleaning. • The nozzle frame is movable, with vertical adjustment via a hand-cranked stainless steel wheel mechanism. • The frame base is equipped with universal casters with brakes, facilitating movement and secure positioning. • Number of frames: 6 sets. • Adjustable nozzle height range: 1000~2000mm. • Nozzle height adjustment method: manual. • Number of nozzles: 4 per set, 6 sets total. • Environmental conditions: temperature 5℃ to 35℃, relative … (truncated)
