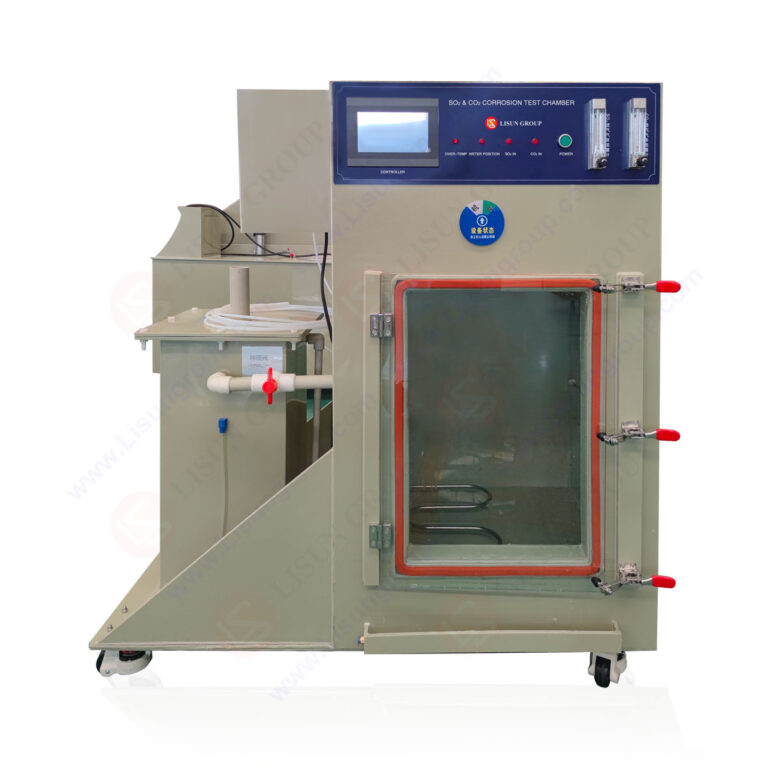

UL 50E 1200-Hour Moist Carbon Dioxide-Sulfur Dioxide-Air Test Chamber

The SQCO-300 mixed gas corrosion test chamber employs sulfur dioxide (SO₂) and carbon dioxide (CO₂) gases to accelerate corrosion processes on materials and products within controlled temperature environments. This equipment replicates material degradation levels occurring over extended timeframes, enabling comparative analysis of protective layer quality and corrosion resistance evaluation for components, electronic elements, metal substrates, electrical products, and industrial materials exposed to mixed gas conditions.

The SQCO-300 maintains precise thermal regulation within the test workspace, introducing calibrated volumes of corrosive gases until achieving standardized concentration levels for material corrosion testing.

Specification:

Standards: UL 50E: 2015 Clause 8.8.2

Dimensions: 300L (internal dimensions: 900×600×550mm, external dimensions: 1400×730×1550mm)

Test Environment Conditions: The equipment requires ambient air circulation without high-concentration particulate matter, corrosive substances, or flammable/explosive gases. Ambient temperature: 5–30°C; Relative humidity: ≤85%RH

Temperature Range: 20–50°C (adjustable)

Temperature Uniformity: ≤±2°C

Temperature Fluctuation: ≤±0.5°C

Temperature Resolution: 0.01°C

Humidity Generation Method: Bottom water reservoir type (10ml/0.0003m³)

Sulfur Dioxide Concentration: 0.1–1% (volume percentage)

Carbon Dioxide Concentration: 0.1–1% (volume percentage)

Gas Generation Method: Cylinder supply system

Concentration Measurement Method: Volume ratio calculation via formula with verification using corrosion-resistant mass flow meters. Gas flow parameters programmable via controller interface.

Gas Flow: Corrosion-resistant mass flow meters with adjustable settings based on test requirements

Test Duration: Up to 9999 hours (adjustable)

Power Supply: Single-phase 220V (110V configuration available… (truncated)
