UL Water Spray Test Device

Name: UL Water Spray Test Device
Brand: LISUN

Product No: JL-UL

Leave a Message

Description

The UL Water Spray Test Device evaluates the physical properties and environmental resilience of electronic components, electrical enclosures, lighting fixtures, and related products under simulated precipitation conditions. Post-test verification enables performance assessment to support product design optimization, compliance validation, and quality assurance protocols.

This apparatus is engineered to UL60507-ENGL 1999 specifications (Figures 38.1, 38.2), ANSI Z21.10.3-2004 requirements, ANSI Z21.58 Figure 10/Figure 11 clauses, and CSA4.3-2004 standards. Compliance extends to UL1598, UL153, UL154B, UL1703, UL8750, UL1741, UL514B, UL1278, UL1571, and related certification protocols.

The nozzle assembly conforms to UL60507-ENGL 1999, UL484-34, ANSI Z21.10.3-2004, ANSI Z21.58, ANSI B94.11M, and CSA4.3-2004 dimensional and performance criteria.

Technical Specifications:

Designed for UL precipitation testing and 45-degree sprinkler evaluation per applicable standards

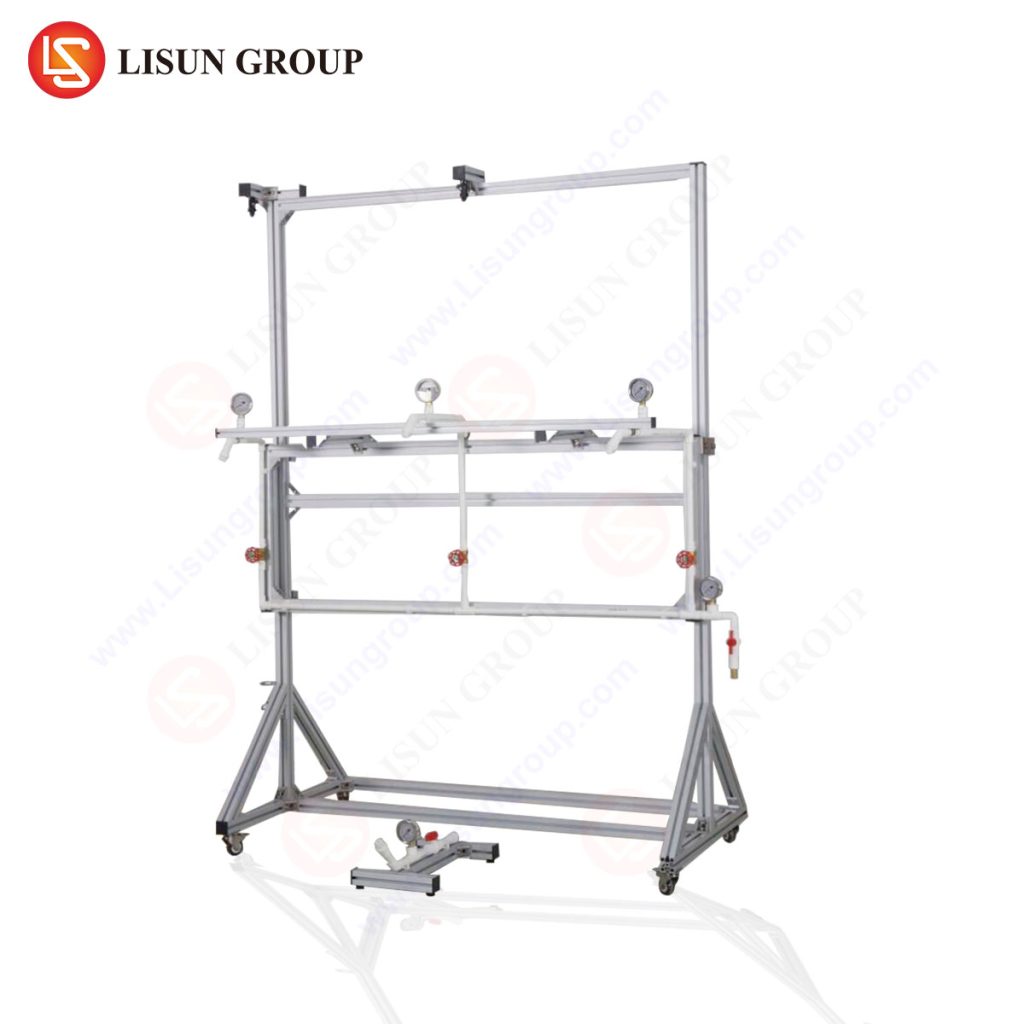

Modular construction comprising: UL Water Spray Test Device (three UL-compliant nozzles, upper assembly) and UL Sprinkler Test Device (single UL-compliant nozzle, lower assembly)
Extruded aluminum frame provides structural stability and facilitates maintenance
Adjustable nozzle mounting assembly with manual stainless steel elevation mechanism
Genuine UL laboratory-grade nozzles ensure measurement traceability
Mobile base assembly with locking casters for laboratory positioning
Integrated pressure monitoring via domestic “Red Flag” brand stainless steel gauges (individual nozzle instrumentation)

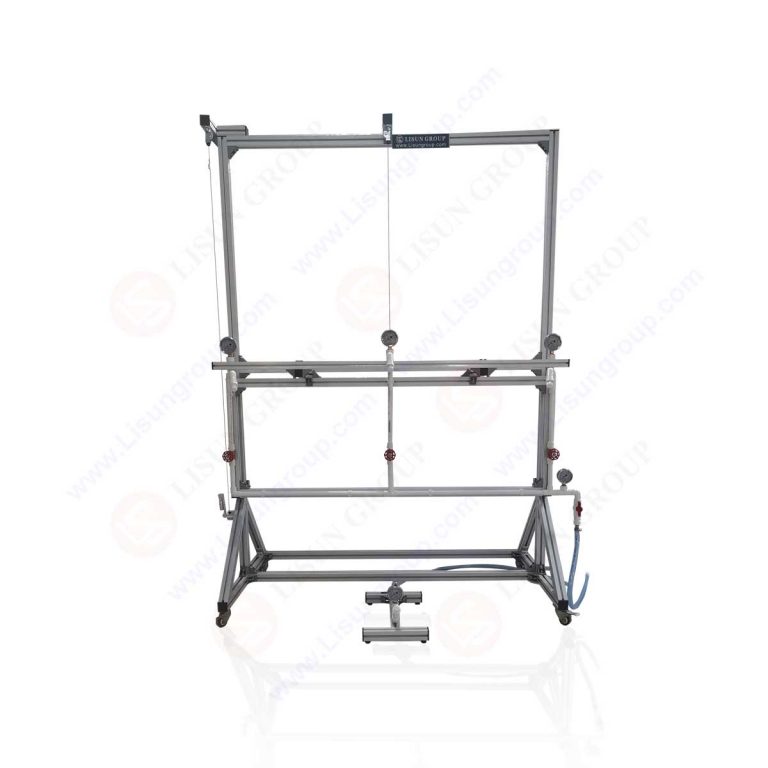

JL-UL_UL Water Spray Test Device UL Water Spray Nozzle UL Water Spray Nozzels Figure 103.1 Figure 103.2 Tags: JL-UL, UL Water Spray Test Device
