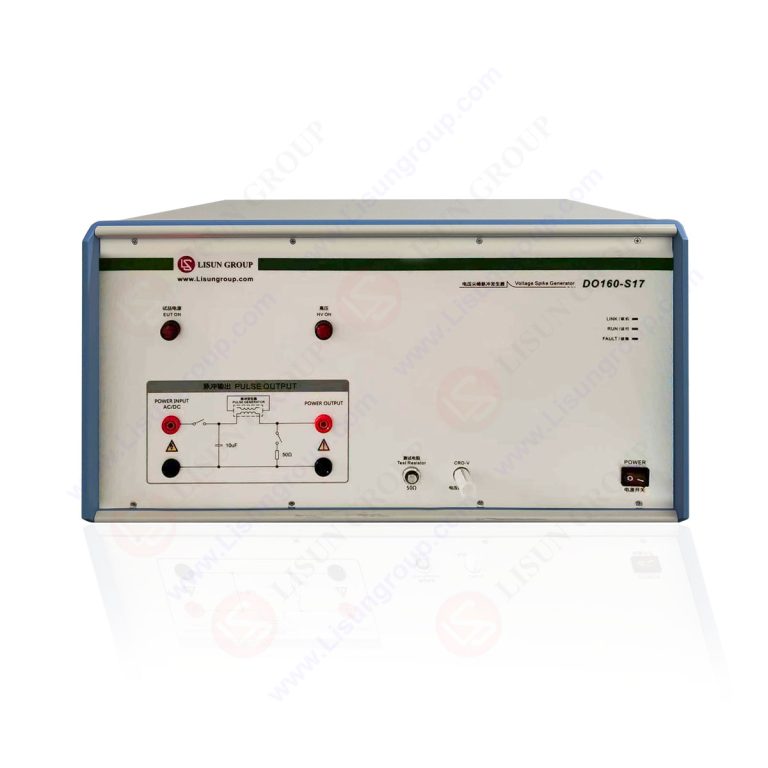

Voltage Spike Generator
Product No: DO160-S17
Leave a Message
Description
The Voltage Spike Generator is engineered to comply with RTCA DO-160 Section 17 and MIL3-DO-160-S17 test requirements for aircraft component qualification. This instrument generates voltage spikes on ungrounded input power supply lines of equipment under test (EUT) at a 2Hz pulse repetition frequency, featuring linear adjustment of pulse peak values from 5V to 1000V.
The generator operates on an Android-based platform, providing comprehensive functionality, intuitive operation, software upgrade capability, and intelligent control. Key technical specifications include:
- Test Voltage Range: 5V to 1000V (continuously adjustable)
- Rise Time: ≤2μs
- Pulse Duration: >10μs
- Impedance: 50Ω ±10%
- Output Polarity: Positive and negative
- Trigger Mode: Automatic
- Pulse Frequency: Maximum 2Hz
- Coupling Decoupling Network: Built-in CDN for AC440V/16A single-phase applications
This equipment is essential for compliance testing according to aviation industry standards including DO160-S17, MIL3-DO-160-S17, and RTCA DO-160 Section 17.
