Mechanics & Gauges
SB0704E 2 oz (57 g) Ground Pin Gauge Compliant with UL 498 Figure 119.3
Model: GNGPL-SB0704E
SB0704E ground pin gauge engineered to UL 498 Figure 119.3 standards with 2 oz (57 g) configuration for dimensional verification of plugs and sockets.

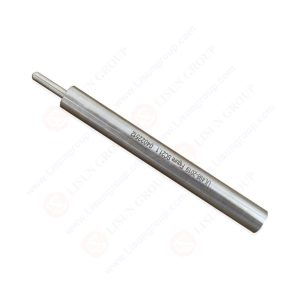

UL 498 Figure SC 21.1 Standard Grounding Pin SB0704A
Model: GNGPL-SB0704A
UL 498 Figure SC 21.1 Standard Grounding Pin SB0704A for compliance testing of grounding systems in attachment plugs and receptacles per UL 498 safety standards.

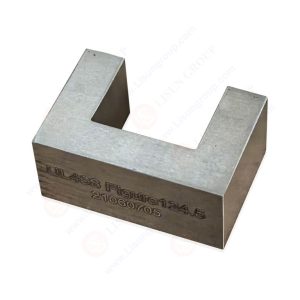

S3638 Bridge Gauge for UL 498 Figure 124.5
Model: GNGPL-S3638
UL 498 Figure 124.5 Bridge Gauge for verifying plug/socket non-interchangeability compliance. Precision-engineered for 33ing with strict dimensional control.

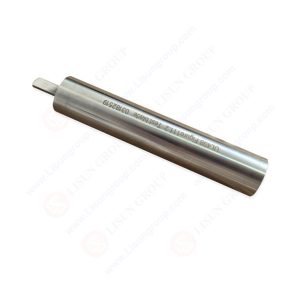

UL 498 Figure 109.2 S3635A Test Blade
Model: GNGPL-S3635A
UL 498 Figure 109.2 Test Blade for dimensional verification of plugs and sockets per UL 498:2012 standards. Ensures compliance with structural requirements.

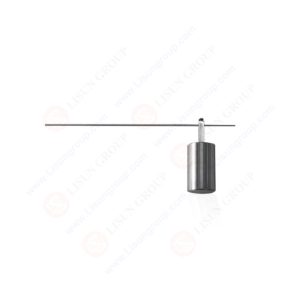

UL 498:2017 Figure 136.2 14 AWG Test Pin
Model: GNGPL-S3633
UL 498:2017 Figure 136.2 14 AWG Test Pin for dimensional verification of plugs and sockets to ensure compliance with UL 498 standards.
14 AWG Test Pin of UL 498 Figure 136.2
Model: GNGPL-S3633
The 14 AWG Test Pin of UL 498:2017 Figure 136.2 is used for testing plug and socket dimensions to UL 498:2017 standards.

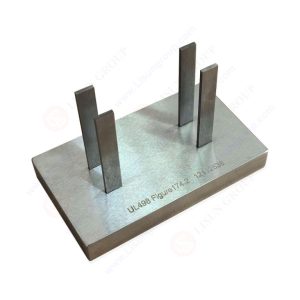

S3336 Fixture for Assembly Security Test Gauge According to Figure 174.2 of UL 498
Model: GNGPL-S3336
UL 498 Figure 174.2 compliant test fixture for assembly security verification of attachment plugs and receptacles. Ensures dimensional accuracy per standard requirements.

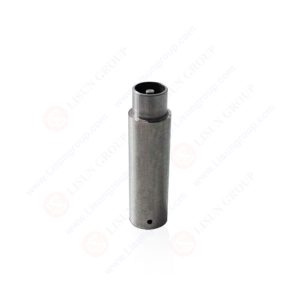

IEC 60065 Figure 9: Test Plug for Mechanical Tests on Antenna Coaxial Sockets
Model: GNGPL-I19
IEC 60065 Figure 9 test plug for mechanical testing of antenna coaxial sockets, fully compliant with IEC 60065 safety requirements and IEC 60169-2 specifications.
IEC 60065 Figure 9 Mechanical Test Plug for Antenna Coaxial Sockets
Model: GNGPL-I19
IEC 60065 Figure 9 mechanical test plug for antenna coaxial sockets ensures compliance with IEC 60065 safety requirements for mechanical testing of coaxial connectors.
