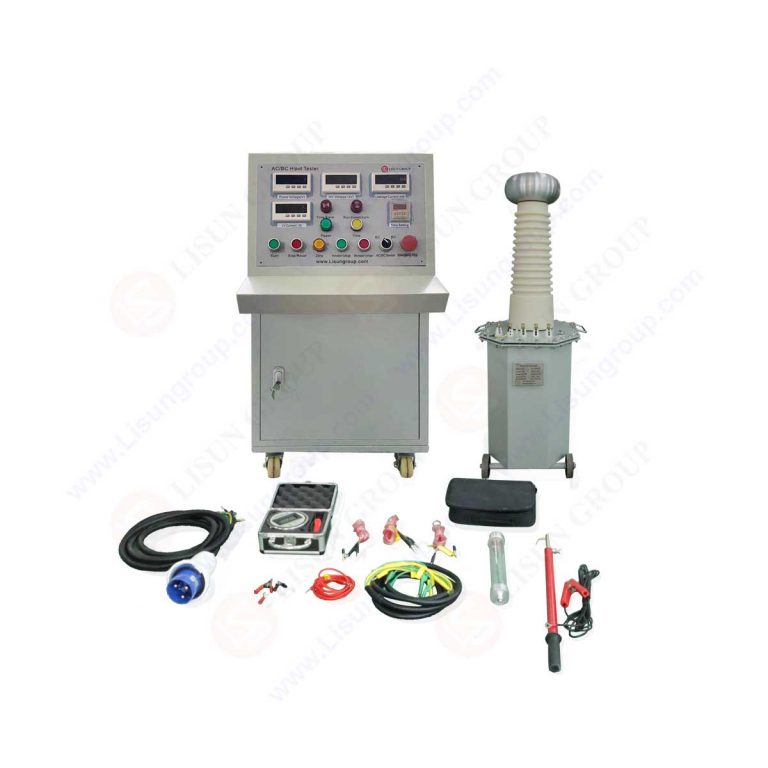

AC/DC High-Potential Withstand Voltage Test System
Leave a Message
HIPOT series of power frequency withstand voltage test equipment is a specialized device focused on withstand voltage performance testing. By adjusting the autotransformer to change the output voltage, the operating voltage can be flexibly adjusted within the rated voltage range of the corresponding transformer to meet different withstand voltage test requirements. The device is equipped with a high-voltage output voltmeter and a low-voltage input ammeter for intuitive reading of test data. It also features a built-in overcurrent protection circuit, providing reliable protection during testing and ensuring safe and stable operation. Its compact design and convenient operation make it a practical tool for conducting withstand voltage tests. Standards: Standards No. Standards Name IEC 60664-1:2020 Insulation coordination for equipment within low-voltage systems – Part 1: Principles, requirements and tests IEC 60060-1:2010 High-voltage test techniques – Part 1: General definitions and test requirements GB/T 1408.1-2016 绝缘材料 电气强度试验方法 第 1 部分：工频下试验 GB/T 311.1-2012 绝缘配合 第 1 部分：定义、原则和规则 GB/T 16927.1-2011 高电压试验技术 第 1 部分：一般定义及试验要求 Specifications: LISUN Model Capacity Output Voltage(kV) Output Current(mA) Rated Input (kVA) AC DC AC DC Voltage(V) Current(A) HIPOT2-10KVAC 2 10 N/A 200 N/A 200 10 HIPOT5-50KV 5 50 70 100 15 200 25 HIPOT10-100KV 10 100 140 100 50 200 50 HIPOT50-100KV 50 100 140 500 100 380 132 HIPOT100-100KV 100 100 140 1000 100 380 250 HIPOT50-150KV 50 150 210 333 100 380 132 HIPOT100-150KV 100 150 210 667 100 380 263 Note : This series of products has 200V cascade taps, which can be connected in series with two or three units to form high voltages of AC 100kV, 150kV, 200kV, 300kV and DC 140kV, 210kV, 280kV, 420kV. According to user needs, 5-15kV medium voltage taps can be drawn from the high-voltage winding for AC withstand voltage test of high-voltage motors. Special specifications of power frequency withstand voltage test equipment can also be customized. Tags：… (truncated)
