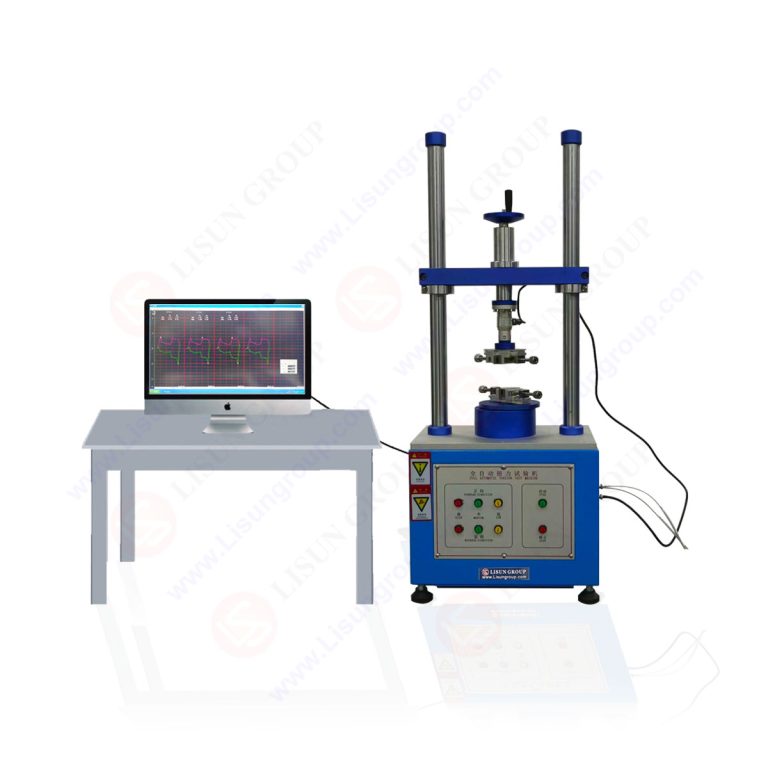

Automatic Torque Testing Machine
Leave a Message
The LS-T2205 Automatic Torque Testing Machine employs a servo motor drive system with closed-loop control to perform torsion mechanical property testing on components and finished products. This equipment utilizes a high-precision torque sensor to collect torque data during testing procedures. Through programmable control of torsion angle, rotational speed, and cycle count, it executes multiple testing modes including unidirectional torsion, bidirectional torsion, constant angle torsion, and constant torque torsion.
During operation, the system automatically records critical parameters including torque, angle, and rotational speed. It generates torque-angle and torque-time test curves while automatically calculating test results such as maximum torque, yield torque, and torsional stiffness in accordance with applicable standards. This equipment is utilized for torque testing applications across multiple industries including mobile devices, tablets, electronic dictionaries, e-books, chargers, automotive door locks, and shaft components.
Compliance Standards
| Standard Number | Standard Name |
|---|---|
| ISO 16047:2005 | Fasteners — Torque-clamp force testing |
| ISO 6789:2017 | Hand torque tools — Calibration methods |
| ISO 898-7:1992 | Mechanical properties of fasteners made of carbon steel and alloy steel — Part 7: Torque test and minimum torque for testing bolts and screws |
| GB/T 16823.3-2010 | Fasteners — Torque-clamp force testing |
| GB/T 15729-2008 | Hand torque tools — Calibration methods |
| GB/T 3098.13-1996 | Mechanical properties of fasteners — Torque test and minimum breaking torque for bolts and screws (nominal diameter 1~10mm) |
Technical Specifications
| Parameter | LS-T2205 | LS-T2205A |
|---|---|---|
| Maximum test torque | 10 kgf·cm | 50 kgf·cm |
| Minimum displayed torque | 1 gf·cm | 10 gf·cm |
| Angle measurement accuracy | 0.1° | |
| Maximum test angle | Unlimited | |
| Test speed range | 2~15,000°/min | |
| Distance between two columns | 240 mm | |
| External dimensions (W×D×H) | 420×280×980 mm | |
| Equipment weight | 75 kg | |
| Power supply requirements | 220~240 V / Single Phase / 50 Hz (60 Hz available upon request) | |
Key Technical Features
- High-Precision Testing System
- Incorporates a servo motor drive system paired with a resistance strain gauge torque sensor, ensuring stable and reliable testing accuracy.
- Minimum displayed torque resolution of 1 gf·cm, with minimum angle measurement resolution of 0.1°.
