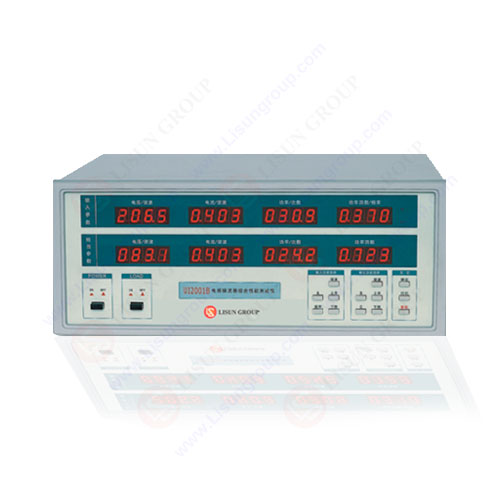

Ballast Inductance Comprehensive Function Analyzer

Name: Ballast Inductance Comprehensive Function Analyzer
Brand: LISUN

Product No: UI2001B

Leave a Message

Description

Ballast Inductance Comprehensive Function Analyzer Technical Specifications:

• Input parameter measurement capabilities: Vrms, lrms, W, PF, Hz, current crest factor, total harmonic distortion, and 0-50th harmonic components. Voltage measurement range: 10.0-300.0V, current measurement range: 0.010-2.000A, frequency measurement range: 45-65Hz
• Output parameter measurement capabilities: Vrms, lrms, W, PF, Hz, current crest factor, total harmonic distortion, and 0-50th harmonic components. Lamp voltage measurement range: 10.0-450.0V, lamp current measurement range: 0.010-2.000A
• Measurement accuracy: ± (0.4% of reading + 0.1% of range + 1 digit)
• Comprehensive waveform analysis functionality supporting all curve types with data and graphical output printing
• Standard communication interface compatible with PC systems running Windows 98/2000/XP/Vista operating systems

Tags：Integrated Function Tester for Inductance Ballast , UI2001B
