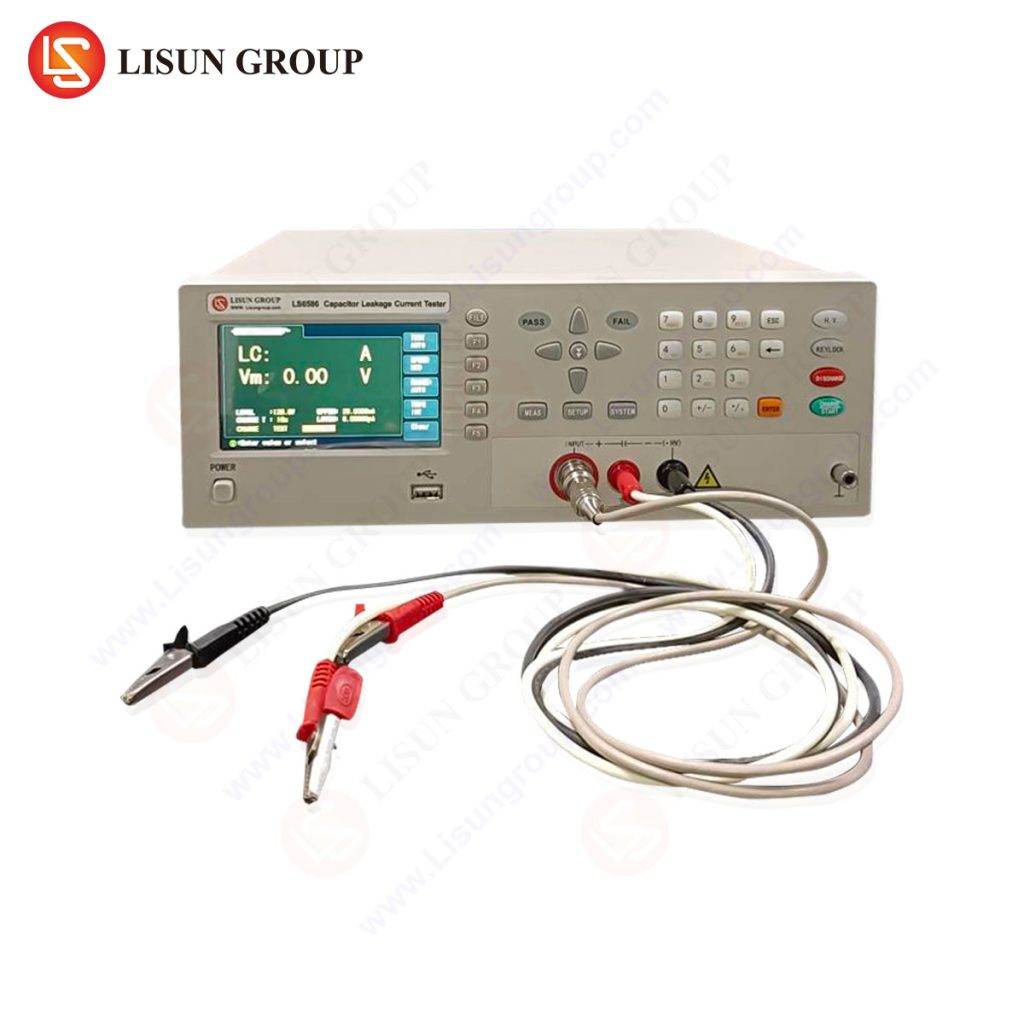

Capacitor Leakage Current Tester
Product No: LS6586
Leave a Message
Description
LS6586 series capacitor leakage current tester is a precision instrument designed for compliance testing to IEC 60384-1 standards, featuring high stability and reliability for capacitor leakage current measurement. The unit provides comprehensive interface functionality with continuously adjustable test voltage parameters. It performs multiple capacitor leakage current test protocols and supports diode testing applications, making it suitable for integration into automated test systems within manufacturing and quality control environments.
Specifications:
- High reliability and stability with LCD color display
- Measurement range: 0.001μA to 20.00mA with 4-digit resolution
- SCPI command protocol for automated system integration
- Automatic test condition storage: 50 internal profiles and 500 USB storage files
- Flexible interface configuration for data recording, storage, and processing requirements
- USB firmware upgrade capability for customized functionality
| LISUN Model | LS6586-500 | LS6586-800 |
|---|---|---|
| Test voltage | 1-500V, continuously adjustable | 1-800V, continuously adjustable |
| Test function | LC (Leakage current), IR (Insulation resistance) | LC (Leakage current), IR (Insulation resistance) |
| Voltage accuracy | 0.5% set value ±0.2V | 0.5% set value ±0.2V |
| Measuring range | LC (0.001μA-20.00mA), IR (0.01kΩ-99.99GΩ) | LC (0.001μA-20.00mA), IR (0.01kΩ-99.99GΩ) |
| Measurement accuracy | 1% ±0.05μA | 1% ±0.05μA |
| Charging time | 0-999s, continuously adjustable | 0-999s, continuously adjustable |
| Test time | Fast: ~30 tests/second, Medium: ~15 tests/second, Slow: ~6 tests/second | Fast: ~30 tests/second, Medium: ~15 tests/second, Slow: ~6 tests/second |
| Test range | Automatic, 20mA, 2mA, 200μA, 20μA, 2μA (5 ranges) | Automatic, 20mA, 2mA, 200μA, 20μA, 2μA (5 ranges) |
| HANDLER port | Pass, fail, upper limit exceedance, lower limit exceedance, buzzer alarm, indicator display | Pass, fail, upper limit exceedance, lower limit exceedance, buzzer alarm, indicator display |
| Interface options | RS232, USB DEVICE, HANDLER, GPIB (optional) | RS232, USB DEVICE, HANDLER, GPIB (optional) |
| Dimensions | 310 × 110 × 315 mm | 310 × 110 × 315 mm |
| Weight | 8 kg | 8 kg |
