Electronic Ballast Analyzer

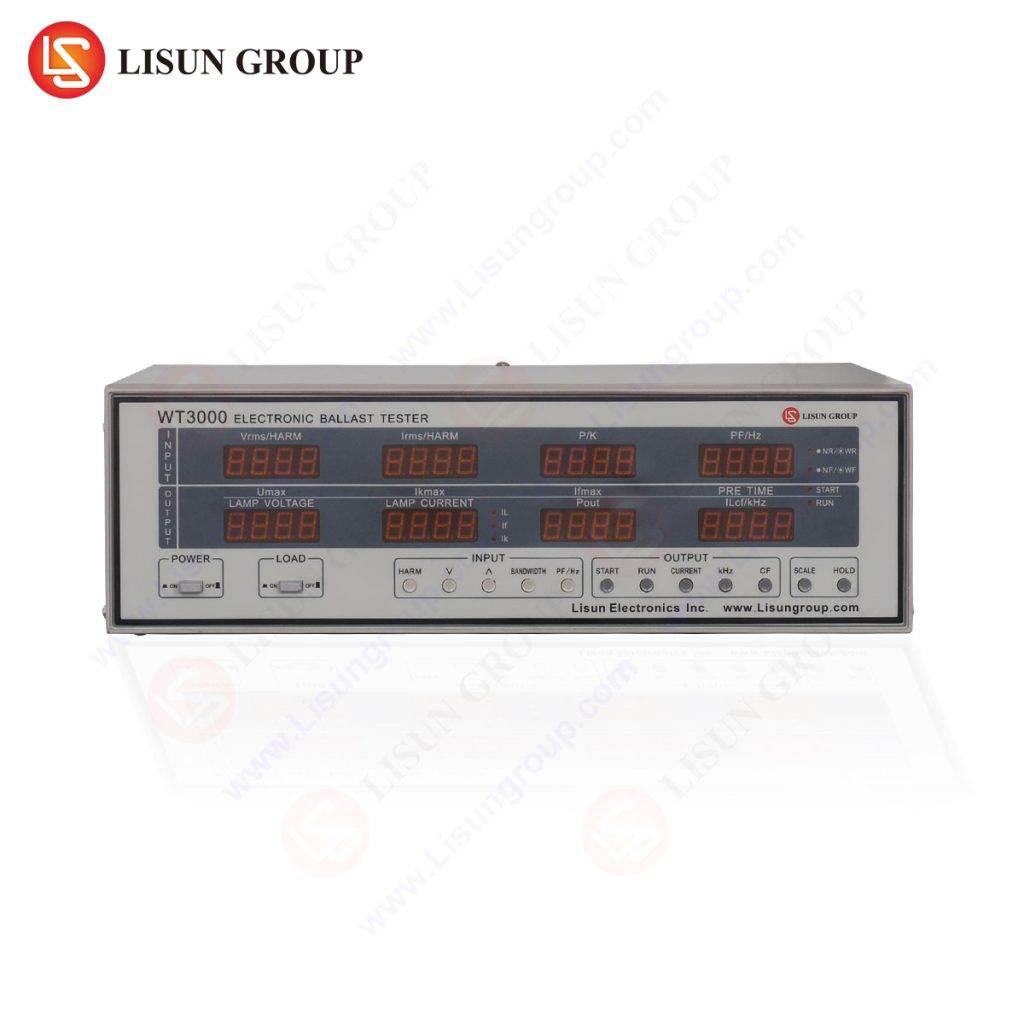

The WT3000 electronic ballast analyzer is engineered to meet the stringent requirements of international standards IEC 60929, IEC 60969, IEC 61000-3-2, GB/T15144-2005, and GB/T17263-1998 for electronic ballast performance evaluation.

Compliance Standards:
IEC 60929 / GB/T15144-2005: “AC and/or DC-supplied electronic control gear for tubular fluorescent lamps – Performance requirements”
IEC 60969: “Self-ballasted compact fluorescent lamps for general lighting services – Performance requirements”
IEC 61000-3-2 / GB/T-17625.1: “Amendment 1 – Electromagnetic compatibility (EMC) – Part 3-2: Limits – Limits for harmonic current emissions (equipment input current ≤16 A per phase)”

Measurement Capabilities:
• Input Parameters: Vrms, Irms, Power (W), Power Factor (PF), Frequency (Hz), Phase Angle, Total Harmonic Distortion, and 0-39 harmonic components
• Output Parameters: Lamp Voltage, Lamp Current, Filament Current, Guided Cathodic Current, Lamp Power, Crest Factor, Oscillatory Frequency, Single High-Frequency Analysis
• Startup Analysis: Lamp Voltage, Lamp Current, Filament Current, Guided Cathodic Current Curves and Parameters, Preheating Time Measurement

Technical Specifications:
• Eight simultaneous display windows for real-time monitoring of input and output characteristics
• Frequency response up to 1MHz for precise testing of diverse electronic ballast types
• Advanced envelope waveform analysis with symmetry evaluation for lamp current crest factor
• Ultra-high-speed sampling at 10MHz maximum frequency for dynamic single-frequency curve analysis
• Portable design with integrated microprocessor architecture, optimized for development and production line applications
• Standard RS-232C interface with Windows-compatible software for data acquisition and analysis

Applications: Quality control laboratories, electronic ballast manufacturing facilities, lighting product development, and compliance testing centers requiring IEC and GB/T standard verification.
