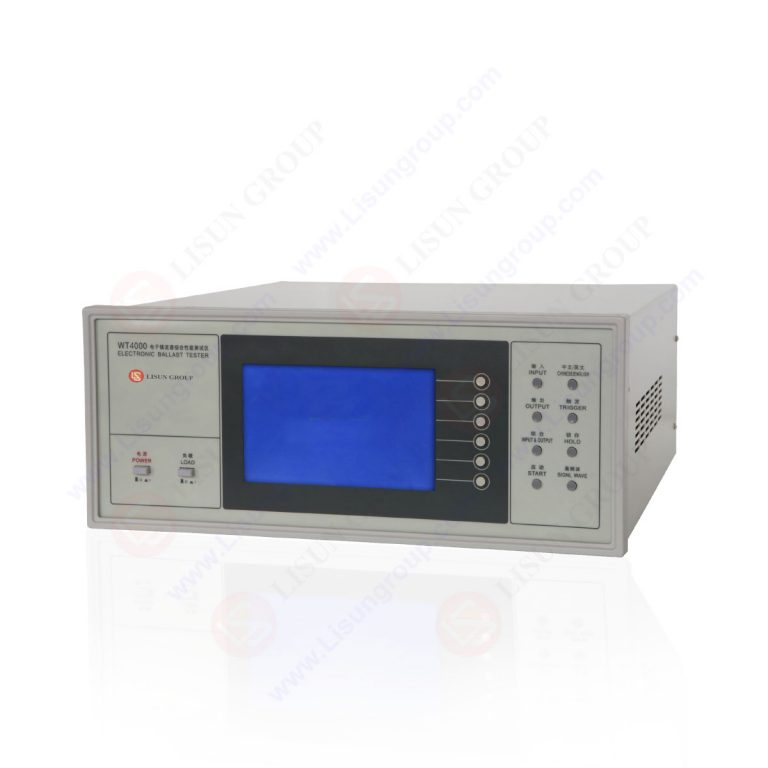

Electronic Ballast Compliance Tester
Product No: WT4000
Leave a Message
Description
The WT4000 Electronic Ballast Compliance Tester performs comprehensive parameter measurement of electronic ballasts in accordance with IEC 61347-2-13 standards. The system utilizes specialized software to display output, input, and startup parameters for compliance verification.
Measurement Parameters
- Input Parameters: Vrms, Lrms, W, PF, Hz, phasic angle, total harmonic distortion, and 0-39 harmonic components
- Output Parameters: Lamp voltage, lamp current, filament current, guided cathodic current, lamp power, crest factor, oscillatory frequency, and single high-frequency analysis
- Startup Analysis: Startup lamp voltage, lamp current, filament current, guided cathodic current curves and parameters, preheating time measurement
Technical Specifications
- Simultaneous display on 8 measurement windows for comparative analysis of input and output parameters
- Preheat energy testing with filament preheat time measurement
- Parameter tracking from 0 to 5 seconds for filament voltage, current, and power
- Up to 1MHz Lrms test capability for comprehensive electronic ballast analysis
- High-frequency curve symmetry analysis for output current
- 12-bit high-speed A/D conversion with 10MHz sampling rate for detailed signal curve analysis
- Complete input and output testing cycle within 60 seconds
System Features
- Portable design with standalone operation capability for testing, display, and printing without computer connection
- Comprehensive test reports including data and curves compliant with international standards
- PC communication interface compatible with Windows 98/2000 operating systems
- English software interface available
