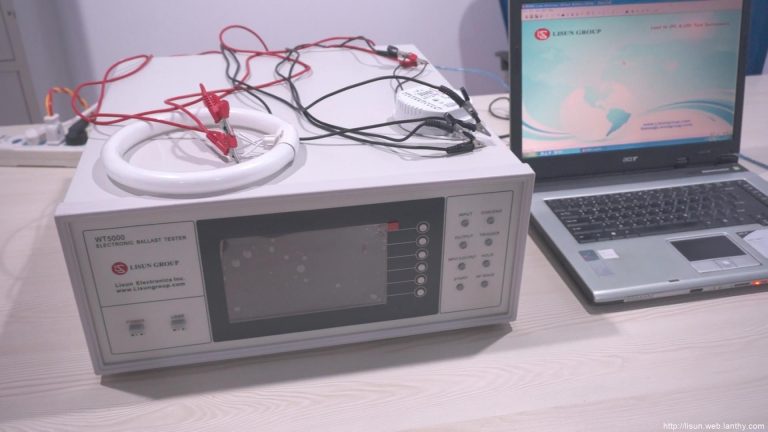

Electronic Ballast Tester WT5000

The WT5000 Electronic Ballast Tester is an enhanced version of the WT3000, featuring a superior LCD for direct waveform and parameter display. This device encompasses all functions and technical specifications of the WT3000 and supports report printing with a connected printer. It adheres to international standards for electronic ballasts, including IEC 60929, IEC 61000-3-2, GB/T15144-2005, and GB/T17263-1998.
Standard compliance includes: IEC 60929 / GB/T15144-2005 for AC and/or DC-supplied electronic control gear for tubular fluorescent lamps, IEC 60969 for self-ballasted compact fluorescent lamps, and IEC 61000-3-2 / GB/T-17625.1 for electromagnetic compatibility limits.
Specifications:

• Enhanced analysis for envelope wave
• Superior LCD for direct test report display without PC connection
• PC communication via RS-232 with English software compatible with WinXP, Win7, and Win8
• Voltage, Current, and Power Accuracy: ± (0.1% reading + 0.1% range + 1 word)
• Power Factor Accuracy: ± (0.002 + 0.001/reading + 1 word); Frequency Accuracy: ±0.1% reading
• Harmonic Accuracy (Virtual Value): ± (0.1% range + 5% reading)
• Imported Cathodic Current Accuracy: ± (1% reading + 1% range + 2 words)
• Oscillation Frequency Accuracy: ± 0.5% reading
• Input Parameters Measurement includes test voltage, current, power, power factor, power net frequency, total harmonic, and 0~39 harmonic
• Voltage and current basic wave frequency range: 45Hz~65Hz
• Voltage range: 10.0~300.0V (virtual value); Power range: NR: 0~450.0W; WR: 0~999.9W
• Current range: NR: 0.010~1.500A (virtual value); WR: 0.010-4.500A (virtual value)
• Power factor range: 0.000~1.000
