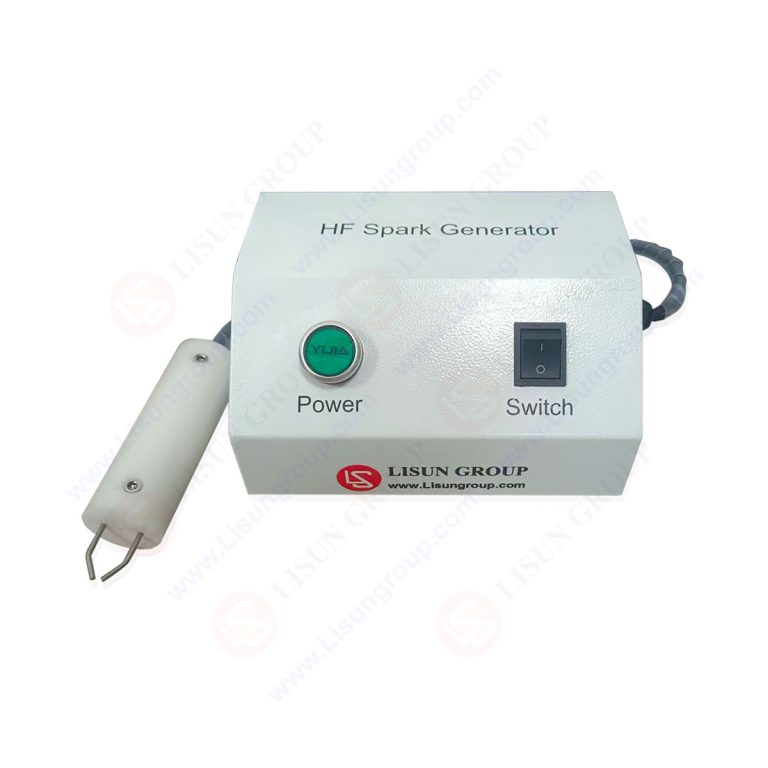

High Frequency Spark Generator

High Frequency Spark Generator

Product No: LS-B59

Leave a Message






    captcha

    Description

    The LS-B59 high-frequency spark generator is a precision testing instrument engineered for compliance verification with IEC 61347-1:2024 Clause 11.4.2 and GB 19510.1-2023 standards. This device generates controlled high-frequency sparks to assess the flammability of gases emitted from ballast components during simulated fault conditions, determining potential safety hazards with laboratory-grade accuracy.

    Engineered with operator safety as a priority, the instrument features an insulated gripping rod constructed from Saigang material, ensuring secure handling during testing procedures. The compact chassis design optimizes laboratory workspace utilization while maintaining operational stability and reliability.

    The intuitive control interface facilitates straightforward operation, enabling technicians to obtain precise test results efficiently. This instrument provides essential verification that ballast safety performance meets regulatory requirements, supporting quality control protocols for electrical equipment manufacturers and testing laboratories.

    Compliance Standards

    Standards No. Standards Name
    IEC 61347-1:2024 Lamp controlgear – Part 1: General and safety requirements
    GB 19510.1-2023 灯的控制装置 第 1 部分：一般要求和安全要求

    Technical Specifications

    Item Name Specification
    Power Supply AC220~240V, 50Hz/60Hz, 20W Max
    Control Mode Push button switch
    Output Voltage 7.5~10KV
    Test Chamber Paint chassis
    Dimensions L*W*H=200*140*120mm (not includes holding rod)

    Typical Applications

    • Ballast manufacturers conducting pre-shipment safety performance verification testing
    • Electrical equipment testing laboratories performing compliance certification testing per IEC 61347-1:2024 and GB 19510.1-2023
    • Research and development facilities validating fault safety performance during ballast design phases
    • Electrical engineering procurement departments screening ballast quality during component selection
    • Maintenance technicians conducting safety re-inspection of ballasts in lighting equipment
    • Industry regulatory bodies performing quality supervision and spot-check testing on ballast products

    IEC 61347-1:2024 Clause 11.4.2
