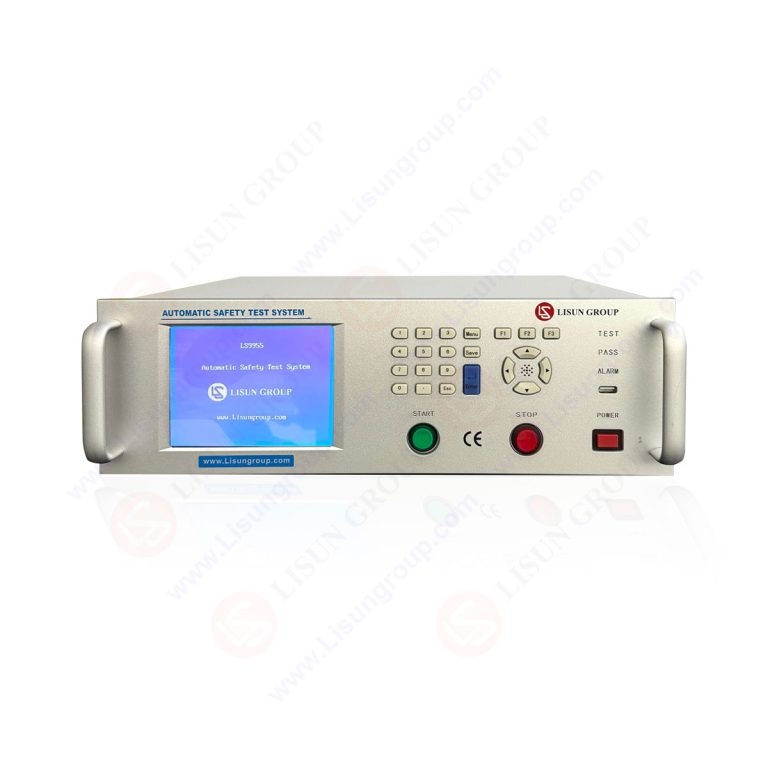

IEC 60335-1 Compliant Automatic Safety Test System

IEC 60335-1 Compliant Automatic Safety Test System

Product No: LS9955

Leave a Message






    captcha

    Description

    The LS9955/LS9956 Automatic Safety Test System is an integrated testing platform engineered for comprehensive electrical safety verification of products in accordance with international and national standards. This system executes five critical safety tests in a single automated sequence: AC/DC Withstand Voltage Test, Insulation Resistance (IR) Test, Leakage Current (LLC) Test, Grounding Resistance (GR) Test, and Power Test. This integrated approach eliminates the requirement for multiple standalone instruments, thereby optimizing testing workflow efficiency.

    The system incorporates an industrial-grade hardware architecture with intelligent control logic. It features a graphical user interface for precise parameter configuration, real-time test result visualization, and integrated acousto-optic alarms for out-of-specification conditions. The unit provides storage for 50 user-defined test programs, with each program capable of containing up to 8 sequential test steps. This programmability supports both high-volume production line testing and flexible research and development validation protocols.

    Reference Standards:

    • IEC/EN 60335-1 Household and similar electrical appliances – Safety – Part 1: General requirements
    • IEC 60598-1 Luminaires – Part 1: General requirements and tests
    • UL 60335-1 Standard for Safety of Household and Similar Electrical Appliances – Part 1: General Requirements
    • IEC/EN 60950-1 Information technology equipment – Safety – Part 1: General requirements
    • IEC 60601-1 Medical electrical equipment – Part 1: General requirements for basic safety and essential performance
    • GB 4706.1-2024 家用和类似用途电器的安全 第 1 部分：通用要求
    • GB 7000.1-2023 灯具 第 1 部分：一般要求与试验
    • GB 4943.1-2022 信息技术设备 安全 第 1 部分：通用要求
    • GB 9706.1-2020 医用电气设备 第 1 部分：安全通用要求
    • GB 19212.1-2021 电力变压器、电源装置和类似产品的安全 第 1 部分：通用要求和试验

    Note: Specific test requirements vary between standards. Consultation with LISUN application engineering is recommended to verify the exact standard compliance of each LS9955/LS9956 model configuration for your specific testing application.

    Specifications:

    • Withstand Voltage Test (AC/DC)
    • Insulation Resistance Test (IR)
    • Voltage Range Accuracy
    • Current Range
    • IR Range Accuracy
    • Voltage Range 100~4000V ±3% A… (truncated)
