IEC 60335-2-2 Clause 21.101 Vacuum Cleaner Hose Compression Testing Apparatus
Product No: LS-B76
Leave a Message
Description

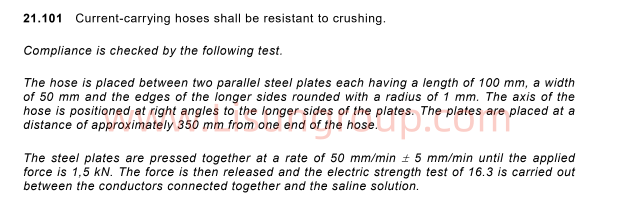

LS-B76 Vacuum Cleaner Hose Compression Testing Apparatus is engineered for pressure validation of vacuum cleaner hoses in accordance with IEC 60335-2-2 Clause 21.101 and GB/T 4706.7 Clause 21.101 standards. This precision instrument verifies hose structural integrity through controlled compression testing to ensure compliance with international safety and durability requirements.
Technical Specifications
| Item | Specification |
| Input Power | 220V, 50Hz, 200W |
| Human-Machine Interface | 7-inch color touchscreen display |
| Programmable Logic Controller | U-Control FX Platform Series PLC |
| Drive Loading Mechanism | Leisai stepper motor with reducer loading system |
| Compression Plate Dimensions | 100mm × 50mm with 1.0mm chamfer on longitudinal edge |
| Compression Speed Range | 0-60 mm/min (presettable), standard requirement: (50 ± 5) mm/min |
| Compression Termination Force | 0-2000N (presettable), standard requirement: 1.5kN |
| Chassis Construction | Aluminum profile and painted steel plate composite structure |
Compliance Standards: IEC 60335-2-2 Clause 21.101, GB/T 4706.7 Clause 21.101
Model Identification: LS-B76
