IEC 62368-1 G.13.6.2 and G.4 Coating Scratch Resistance Test Device

IEC 62368-1 G.13.6.2 and G.4 Coating Scratch Resistance Test Device

Name: IEC 62368-1 G.13.6.2 and G.4 Coating Scratch Resistance Test Device
Brand: LISUN

Product No: LS-B30

Leave a Message

Description

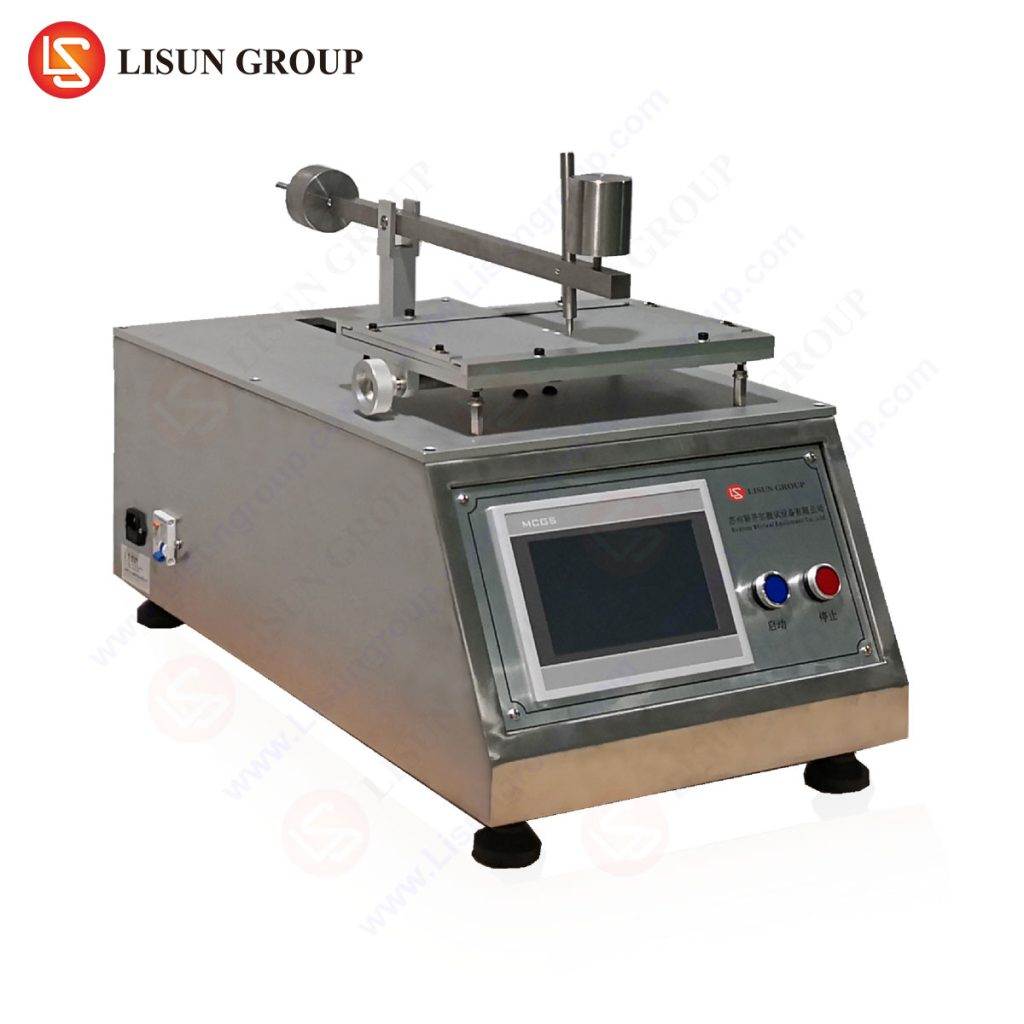

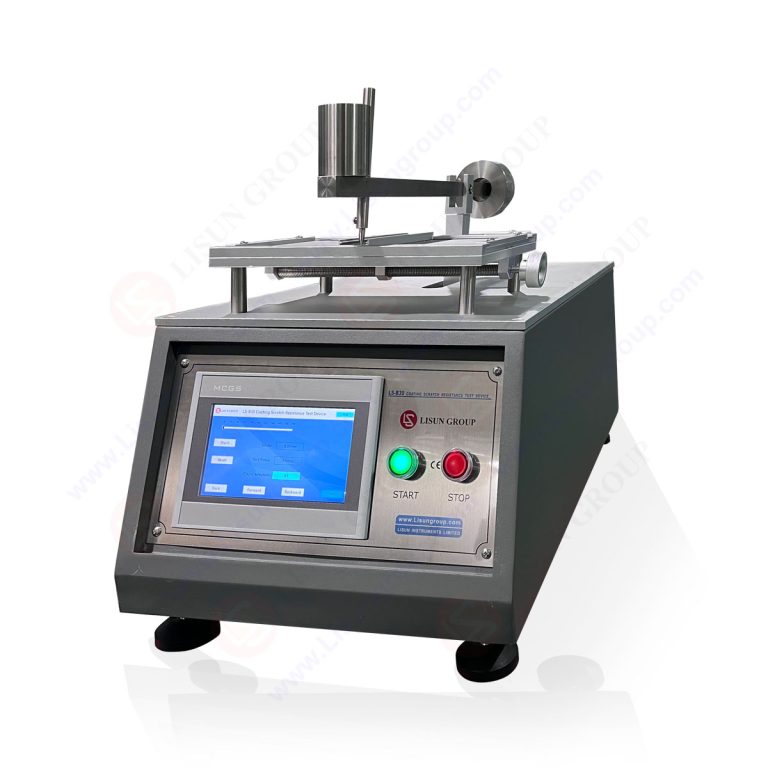

The LS-B30 Coating Scratch Resistance Tester is a precision instrument designed for evaluating the mechanical durability of protective coatings on electrical components. This device applies controlled axial force through a standardized hardened steel needle, executing scratches at specified angles and velocities to simulate tool contact scenarios. It provides quantitative assessment of coating integrity on accessible solid insulating components and printed circuit boards, verifying compliance with international safety standards for puncture resistance.

Standards Compliance:

IEC 62368-1:2018 – Audio/video, information and communication technology equipment – Safety requirements
GB/T 4943.1-2022 – 信息技术设备安全第 1 部分：通用要求 (Information technology equipment safety – Part 1: General requirements)

Technical Specifications:

Scratching Needle: Hardened steel with tapered conical end (cone top 40°, rounding radius 0.25±0.02mm)
Scratching Angle: Needle movement plane perpendicular to test surface with 80°-85° tilt angle
Axial Force: 10N±0.5N during coating scratch resistance testing
Marking Length: Maximum 140mm
Translation Distance: Maximum 200mm
Stroking Speed: 20mm/s±2mm/s (adjustable)

Typical Applications:

Scratch resistance evaluation of coatings on accessible solid insulating components in household appliances
Coating strength verification for insulating parts in similar electrical equipment
Surface coating durability testing on printed circuit boards
Puncture resistance assessment of insulating coatings for electronic devices
Quality compliance testing for coatings on materials used in household appliances and information technology equipment

IEC 62368-1 G.13.6.2 and G.4 Coating Scratch Resistance Test Device
