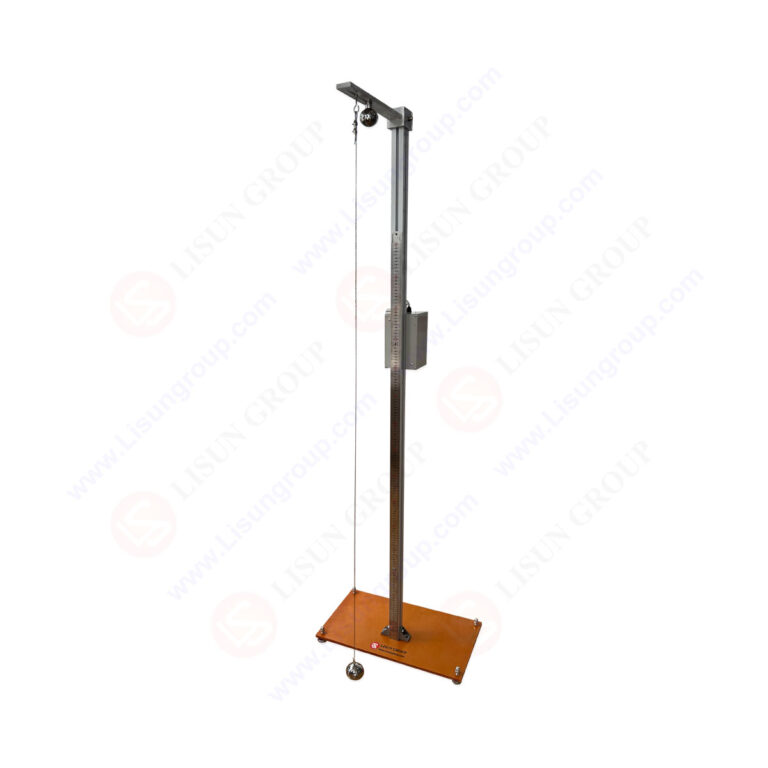

IEC 62368-1:2018 Annex T.6 Figure T.1 Steel Ball Impact Test Apparatus for Equipment Enclosures

Name: IEC 62368-1:2018 Annex T.6 Figure T.1 Steel Ball Impact Test Apparatus for Equipment Enclosures
Brand: LISUN

Product No: LS-B33

Leave a Message

Description

LS-B33 IEC 62368-1:2018 Annex T.6 Figure T.1 Steel Ball Impact Test Apparatus for Equipment Enclosures is engineered to evaluate the mechanical impact resistance of equipment housings, providing quantitative validation of enclosure protection capabilities. This apparatus executes two standardized test methodologies: vertical free-fall impact and pendulum-based horizontal impact. It simulates collision scenarios encountered during operational deployment and transportation by precisely controlling the release of specification-compliant steel spheres from calibrated heights.

During testing, impact energy parameters and contact mechanics strictly adhere to the requirements specified in IEC 62368-1:2023 Annex T.6 Figure T.1 and IEC 60598-1:2020 Clause 4.13.4a. Post-impact evaluation examines enclosure integrity for structural failures including fracture propagation, crack formation, or deformation that could compromise safety compliance. This apparatus provides objective data to determine whether enclosure impact resistance meets international safety standards, supporting product reliability throughout the operational lifecycle.

Compliance Standards:

IEC 62368-1:2023 – Audio/video, information and communication technology equipment – Part 1: Safety requirements
IEC 60598-1:2020 – Luminaires – Part 1: General requirements and tests
GB/T 4943.1-2022 – Safety of information technology equipment – Part 1: General requirements
GB/T 7000.1-2015 – Luminaires – Part 1: General requirements and tests

Technical Specifications:

Impact sphere: Φ50mm diameter, 500±25g mass (510g variant available; custom specifications supported)
Drop height adjustment range: 0.5–1.5 meters with precision calibration
Test methodologies: Vertical free-fall impact and pendulum-based horizontal impact

Typical Applications:

Information technology equipment manufacturers conducting pre-compliance impact resistance validation of enclosure assemblies
Lighting fixture manufacturers performing safety-critical impact testing per IEC 60598-1:2020 requirements
Third-party certification laboratories providing standardized impact performance evaluation services for equipment enclosures
Product development teams conducting structural integrity verification during enclosure design optimization phases
