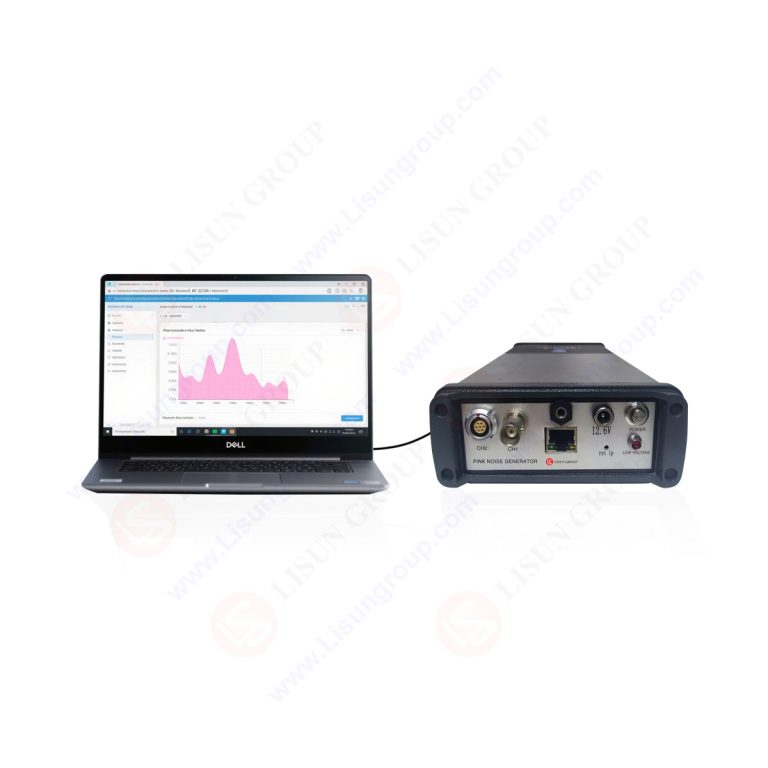

The LS8280 Pink Noise Generator is a computer-controlled dual-channel signal analysis instrument engineered for compliance testing applications. This instrument generates pink noise compliant with IEC 60065 Clauses 4.2 & 4.3 and IEC 62368-1:2023 Annex E (E.2.1), along with sine wave noise specified in IEC 62368-1:2023 Annex E (E.2.2).
In addition to these standard-compliant signals, the generator produces a comprehensive suite of test waveforms including swept-frequency sine waves, swept-amplitude sine waves, sine wave bursts, white noise, narrowband white noise, and narrowband pink noise. These signals are specifically designed for verifying electrical energy source classifications in audio equipment, conducting tests under normal and abnormal operating conditions as defined by international standards, and meeting noise signal supply requirements for household appliances, electronic musical instruments, and professional audio equipment.
Configuration List:
| Serial No. | Name | Main Function | Quantity |
|---|---|---|---|
| 1 | Noise Generator | Dual-channel signal generator | 1 |
| 2 | Noise Generator Software | Generates pink noise, sine wave noise, white noise, and other test signals | 1 |
| 3 | Computer | System integration and configuration platform | 1 |
Technical Specifications:
- Frequency Range: 1Hz to 70kHz ±0.2dB
- Output Channels: 2 independent channels supporting single-channel or dual-channel synchronous operation for multi-channel amplifier testing
- Signal Input Interface: BNC interface (low impedance, high stability, compatible with professional test equipment)
- Output Interface: 100M RJ45 (enables remote parameter configuration and data exchange with control computer)
- Phase Adjustment: Configurable 0°/90° phase difference between channels
- Output Amplitude: Compliant with IEC 60065 and IEC 62368-1 specifications for sine wave and pink noise amplitudes
