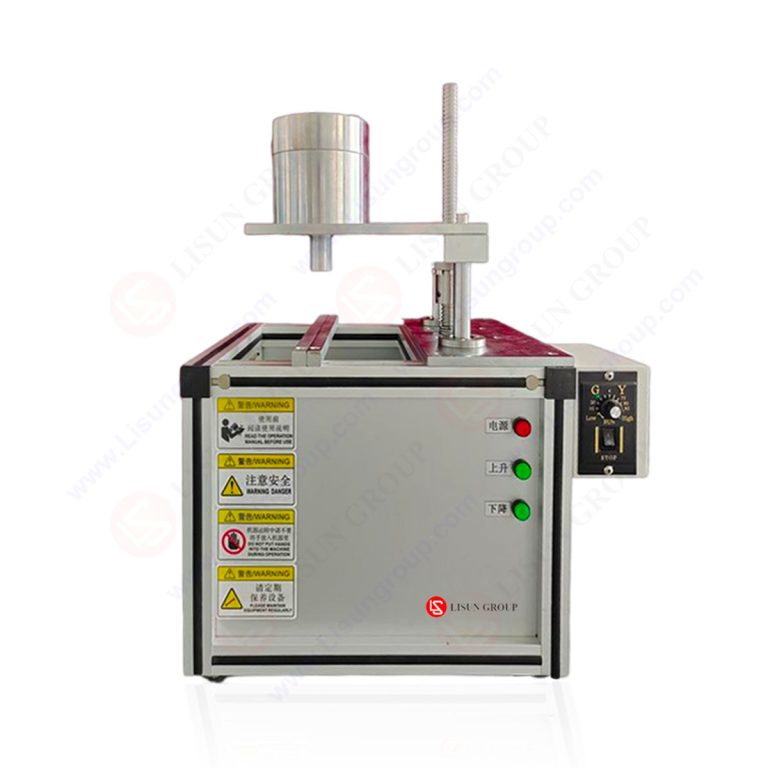

IEC 62560 Clause 9.4 Axial Compression Test Equipment
Leave a Message
The LS-B66 Axial Compression Testing Device is engineered for precise evaluation of axial compression performance in lighting fixtures. Utilizing a combination of weight application and motor control, it simulates axial compression scenarios encountered during assembly, transportation, and operational phases. The device ensures slow and stable pressure transmission, facilitating accurate assessment of structural integrity and compressive stability. Its support and positioning structure adheres to specified standards, guaranteeing uniform force distribution and compliance throughout testing. The intuitive operation delivers dependable test data, aiding in the verification of lighting fixtures against axial compression standards, thereby supporting quality control and compliance verification. Standards:
- IEC 62560:2023 Performance requirements for LED modules for general lighting
- GB/T 24906-2023 Performance requirements for LED modules for general lighting
Specifications:
- Test pressure: 80N / 120N
- Motor speed: 0 to 1 rpm, adjustable
- Working position: 1
- Force application via weight, with motor-controlled descent to maintain stable force during testing
