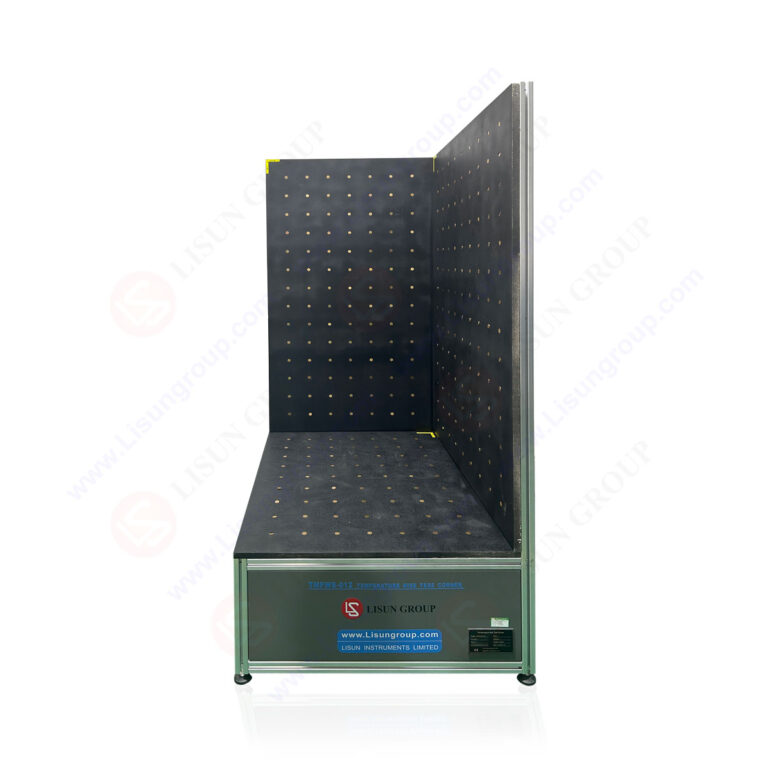

IEC60335-1 Clause 11 Temperature Rise Test Corner

The TMPWS series Temperature Rise Test Corner is a standardized environmental simulation device meticulously engineered for assessing the temperature rise performance of electrical and electronic products. It replicates the testing environments mandated by standards such as IEC 60335-1:2023, ensuring stable and compliant conditions for temperature rise testing of home appliances, medical devices, and information technology products. Utilizing precisely arranged K-type thermocouples and brass temperature measuring strips, the TMPWS series captures real-time temperature data from critical components of the tested product, including windings, housings, and terminal blocks, during operation. Based on the stability criterion of a “temperature difference of ≤2°C over three hours,” it accurately calculates the temperature rise value, providing essential data for evaluating product lifespan, heat dissipation design rationality, and safety compliance. The TMPWS series Temperature Rise Test Corner can be optionally equipped with the TMP-16 series Multiplex Temperature Tester for simultaneous multi-channel data recording and analysis, automatically generating temperature rise curves and test reports. This device addresses a broad spectrum of R&D, verification, and quality control requirements for LED lighting, home appliance manufacturers, medical device companies, and third-party testing organizations.

Standards:
Standards NO. Standards Name
IEC 60335-1:2023 Clause 11 Household and similar electrical appliances – Safety – Part 1: General requirements
IEC 60601-1:2020 Clause 11 Medical electrical equipment – Part 1: General requirements for basic safety and essential performance
IEC 60065-2014 Clause 11 Audio, video and similar electronic apparatus – Safety requirements
IEC 62368-1:2023 Clause 9 Audio/video, information and communication technology equipment – Part 1: Safety requirements
IEC 62040-1:2020 Clause 5.7 Uninterruptible power systems (UPS) – Part 1: General and safety requirements
