Impulse Winding Tester
Leave a Message

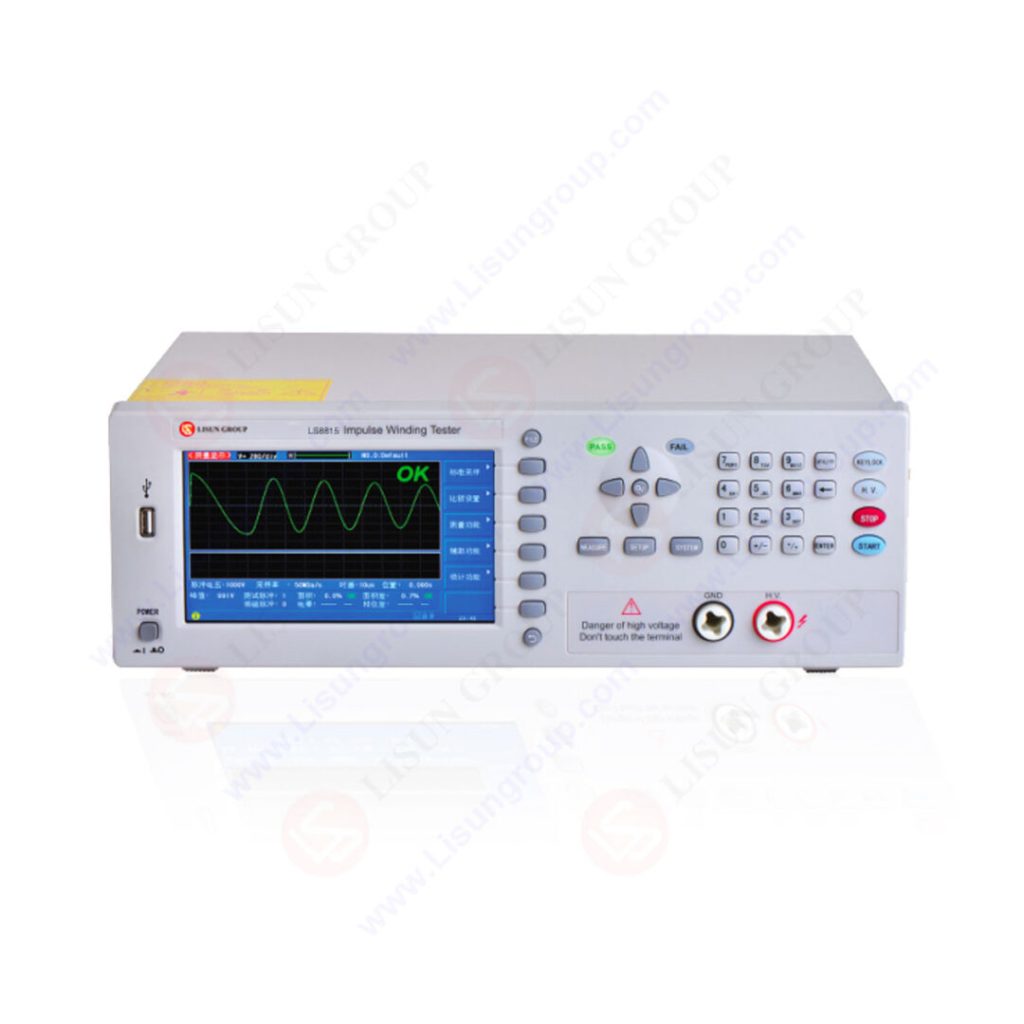

The LS8815 Impulse Winding Tester is engineered to meet the rigorous testing requirements of winding components in compliance with IEC 60270 standards. Its operational principle involves utilizing a high-voltage charged capacitor with minimal test energy to establish RLC parallel resonance with the coil under evaluation. Through analysis of oscillating attenuation waveforms, employing precision sampling technology at rates up to 100MSa/s (with 200MSa/s customization available), the instrument accurately identifies insulation defects including inter-turn short circuits, inter-layer short circuits, and diminished insulation performance. This enables component manufacturers and quality control departments to maintain stringent product quality standards.
The instrument series demonstrates rapid measurement capabilities with exceptional waveform repeatability, making it suitable for comprehensive testing of enameled wire wound components such as motors, power frequency transformers, relays, switching power supply transformers, and degaussing coils.
Technical Specifications
| Model | LS8815S-8 | LS8815-5KV | LS8815-3KV |
| Output Pulse Voltage | 100V–5000V; 10V step; ±5%±10V accuracy | 100V–3000V; 10V step; ±5%±10V accuracy | 100V–3000V; 10V step; ±5%±10V accuracy |
| Test Channels | 8 channels | Single channel | Single channel |
| Inductance Measurement Range | >10μH | >10μH | >10μH |
| Maximum Pulse Energy | 0.25J | 0.25J | 0.25J |
| Display Content | Zoom display, parameter settings, standard/test waveforms, comparative results, file information | Zoom display, parameter settings, standard/test waveforms, comparative results, file information | Zoom display, parameter settings, standard/test waveforms, comparative results, file information |
| Waveform Sampling | Sampling rate: 100MSa/s–100kSa/s; 8-bit resolution; 6500-byte sampling points | Sampling rate: 100MSa/s–100kSa/s; 8-bit resolution; 6500-byte sampling points | Sampling rate: 100MSa/s–100kSa/s; 8-bit resolution; 6500-byte sampling points |
| Standard Wave Sampling | Continuous cycle, single cycle, single sample (up to 32-sample averaging) | Continuous cycle, single cycle, single sample (up to 32-sample averaging) | Continuous cycle, single cycle, single sample (up to 32-sample averaging) |
| Input Impedance | 10MΩ | 10MΩ | 10MΩ |
| Measurement Speed | Maximum 15 tests/second | Maximum 15 tests/second | Maximum 15 tests/second |
| Pulse Programming | Test pulses: 1–32 programmable; Degaussing pulses: 0–16 programmable | Test pulses: 1–32 programmable; Degaussing pulses: 0–16 programmable | Test pulses: 1–32 programmable; Degaussing pulses: 0–16 programmable |
| Trigger Modes | Internal; Manual (including foot control); External; Bus | Internal; Manual (including foot control); External; Bus | Internal; Manual (including foot control); External; Bus |
| Comparison Modes | Area comparison; Differential zone comparison; Corona comparison; Phase difference comparison | Area comparison; Differential zone comparison; Corona comparison; Phase difference comparison | Area comparison; Differential zone comparison; Corona comparison; Phase difference comparison |
| Area Repeatability Accuracy | ±1% | ±1% | ±1% |
| Area Difference Repeatability Accuracy | ±1% | ±1% | ±1% |
