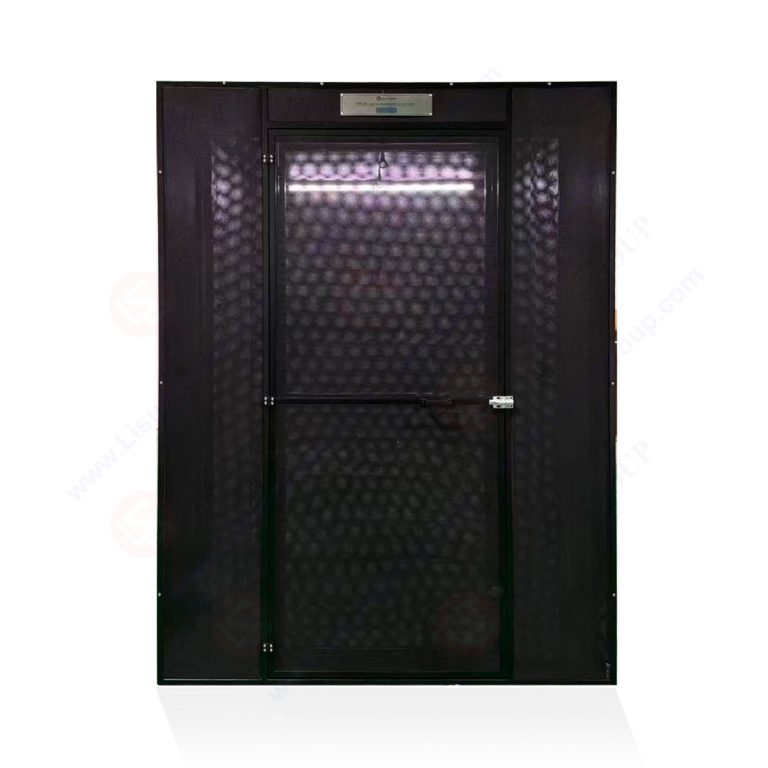

Lamp Cap Temperature Rise Test System

Lamp Cap Temperature Rise Test System

Product No: TMP-L

Leave a Message






    captcha

    Description

    The TMP-L Lamp Cap Temperature Rise Test System (equipped with a wind shield) is a specialized testing apparatus engineered for precise temperature rise evaluation of lamp burners and lamp caps. The system’s integral wind shield component effectively mitigates air convection interference during testing while isolating thermal radiation effects from the light source on the test specimen. This configuration establishes stable environmental conditions for measuring lamp cap operating temperature, ambient temperature, and temperature differentials, ensuring measurement accuracy and repeatability.

    The TMP-L Lamp Cap Temperature Rise Test System demonstrates full compliance with IEC 60598-1:2024 Appendix D (GB 7000.1-2023 Appendix D) and IEC 60360:1998. This system is engineered for thermal performance evaluation of diverse luminaire types and associated components, serving as essential equipment for lamp safety certification protocols and quality assurance programs.

    Standards:

    Standards No. Standards Name
    IEC 60598-1:2024 Luminaires – General requirements and tests
    IEC 60360:1998 Lamp caps – Measurement of temperature rise
    GB 2512-2001 Standard test method for lamp cap temperature rise
    GB 7000.1-2023 Luminaires – Part 1: General requirements and tests
    GB 7250-1994 Measurement method for lamp cap temperature rise

    Specifications:

    LISUN Model TMP-LS TMP-LM TMP-LB
    Inner Layer Dimensions (L*W*H) 900*900*900mm 1200*1000*1800mm 1800*1800*1800mm
    Outer Layer Dimensions (L*W*H) 1200*1200*1150mm 1500*1300*1950mm 2100*2100*1950mm
    Interlayer Spacing 150mm 150mm 150mm
    Mesh Plate Small Hole Diameter 1~2mm 1~2mm 1~2mm
    Small Hole Area 40%±5% 40%±5% 40%±5%
    Lamp Cap Models Nickel-Ring Lamp Caps: E14, E27, E40 and B22d (Other lamp cap specifications can be customized)

    Notes:

    • Alternative dimensional configurations can be engineered according to specific customer requirements (LISUN Model: TMP-LX).
    • The TMP-L Lamp Cap Temperature Rise Test Chamber | Wind Shield must be operated in conjunction with the LISUN TMP-8 Multiplex Temperature Tester.

    Test Procedures

    1. Test Preparation
      1. Equipment Calibration
        Use the thermocouple supporting the LISUN TMP-8 Multiplex Temperature Tester as the temperature sensor. The Lamp Cap Temperature Rise Test Chamber shall meet the requirements specified… (truncated)
