LCR Meter with DC Bias Current Source
Product No: LS1373X
Leave a Message
Description

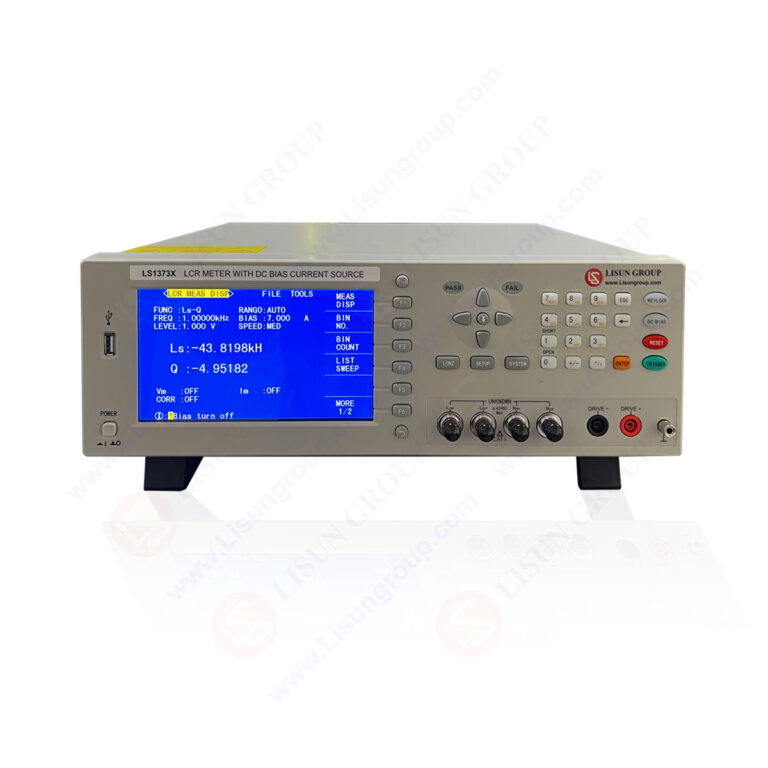

LS1373/LS1379 is an IEC 61010-1 compliant LCR meter integrated with a precision DC bias current source, engineered for comprehensive inductor magnetic core characterization in quality inspection and product analysis applications. The instrument achieves current resolution as low as 0.25mA, enabling detailed analysis of magnetic material properties under controlled DC bias conditions.
The integrated bias source features optimized noise performance and flexible control parameters, supporting automated production line integration through a built-in comparator system. This facilitates high-throughput inductor detection in manufacturing environments.
Technical Specifications
| Model Variants | LS1373X, LS1373CX, LS1379MX, LS1379CMX |
| Current Range | 0-12A / 0-25A configurations |
| Current Resolution | 0.25mA/1.25mA/6.25mA steps across ranges |
| Sweep Adjustment Time | 4ms-3600s / 10ms-3600s / 20ms-3600s |
| Continuous Loading | Conservative 2-3h uninterrupted output capability |
| Maximum Output Voltage | 11V |
| Maximum DC Resistance (Rmax) | Rmax = Vmax/I (Ω) – refer to user manual for calculation |
| Maximum Inductance (Lmax) | Lmax = Vmax/(di/dt) (mH) – refer to user manual for calculation |
| Test Frequency Range | 50Hz-200kHz / 50Hz-1MHz configurations |
| Test Parameters | C, L, X, B, R, G, D, Q, ESR, Rp, θ, |Z|, |Y|, P |
| Test Level | 10mV-2Vrms |
| Basic Accuracy | 0.05% |
| Test Speed | Fast: 50 measurements/second, Medium: 20 measurements/second, Slow: 6 measurements/second |
| Display Ranges | |Z|, R, X: 0.01mΩ-99.9999MΩ |Y|, G, B: 0.00001μS-99.9999S C: 0.00001pF-9.99999F D: 0.00001-9.99999 DCR: 0.01mΩ-99.9999MΩ L: 0.00001μH-99999.9H Q: 0.01-99999.9 θ(RAD): -3.14159-3.14159 θ(DEG): -179.999°-179.999° Δ%: -99.999%-99.999% |
| Signal Source Output Impedance | 30Ω, 100Ω, 1062X |
| Range Mode | Automatic and hold |
| Start/Stop Control | START/STOP physical button, 4 foot control configurations, bus control |
| Calibration Functions | Open/short circuit, full frequency clearing, dot frequency clearing |
| Equivalent Circuit | Series and parallel configurations |
| Comparator System | Three-gear sorting, BIN0-BIN2, PASS/HI/LOW indicators with PASS/FAIL LED display |
| Additional Features | Instrument fault self-test; 99 custom file management groups; Dual progress bar indicator; Bilingual Chinese/English interface; Slave soft switch; Real-time operation; SCPI command set compatibility |
