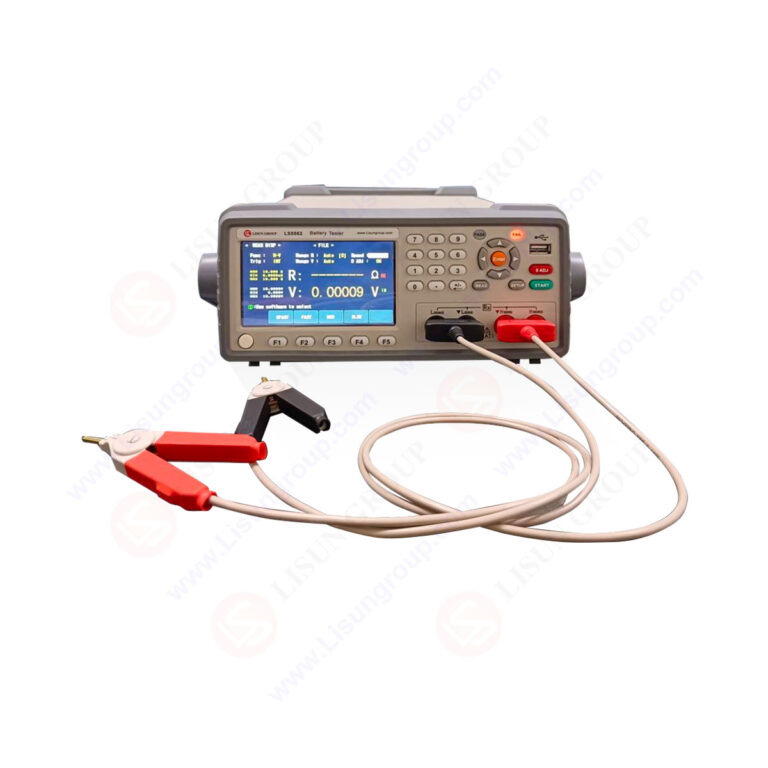

LS5560 High-Voltage Battery Internal Resistance Tester

The LS5560 high-voltage, high-precision battery internal resistance tester is a specialized instrument engineered for comprehensive battery testing applications. It implements an AC 4-terminal measurement methodology to simultaneously quantify battery internal resistance and terminal voltage with exceptional accuracy.

The instrument features a high-resolution color LCD display for clear visualization of test parameters and results. A test lead contact verification function ensures measurement integrity by detecting poor connections. Multiple communication interfaces, including RS232 and optional RS485, support SCPI and Modbus (RTU) protocols for seamless integration into automated test systems and production lines.

With a maximum test rate of 100 measurements per second, 10-level comparator sorting, and HANDLER interface compatibility, this tester is optimized for high-throughput applications such as battery pack assembly verification and production line quality control. Test conditions are automatically preserved across 50 configuration profiles.

Compliance Standards:

• IEC 61960-1:2017 – Secondary cells and batteries containing alkaline or other non-acid electrolytes – Part 1: General requirements
• IEC 62133-1:2017 – Secondary cells and batteries containing alkaline or other non-acid electrolytes – Safety requirements for portable sealed secondary cells
• ANSI C136.10-2019 – Electric Vehicle Supply Equipment (EVSE)
• GB/T 31484-2015 – 电动汽车用动力蓄电池循环寿命要求及试验方法 (Electric vehicle traction battery cycle life requirements and test methods)
• GB/T 31485-2015 – 电动汽车用动力蓄电池安全要求及试验方法 (Electric vehicle traction battery safety requirements and test methods)
• GB/T 18287-2013 – 移动电话用锂离子蓄电池及蓄电池组总规范 (General specification for lithium-ion batteries and battery packs for mobile phones)
• GB/T 22473-2013 – 储能用锂离子电池和蓄电池组 通用要求 (General requirements for lithium-ion batteries and battery packs for energy storage)

Technical Specifications:

• 4.3-inch LCD display with simultaneous resistance and voltage readout
• Minimum resolution: 0.1μΩ (resistance), 10μV (voltage)
• Maximum test speed: 100 measurements/second
• Test lead contact verification function
• Built-in 10-level comparator for automated sorting
• HANDLER interface for production line integration
• Standard RS232 communication interface (RS485 optional)
• Supports SCPI and Modbus (RTU) communication protocols
• Automatic test condition storage with 50 configuration profiles
