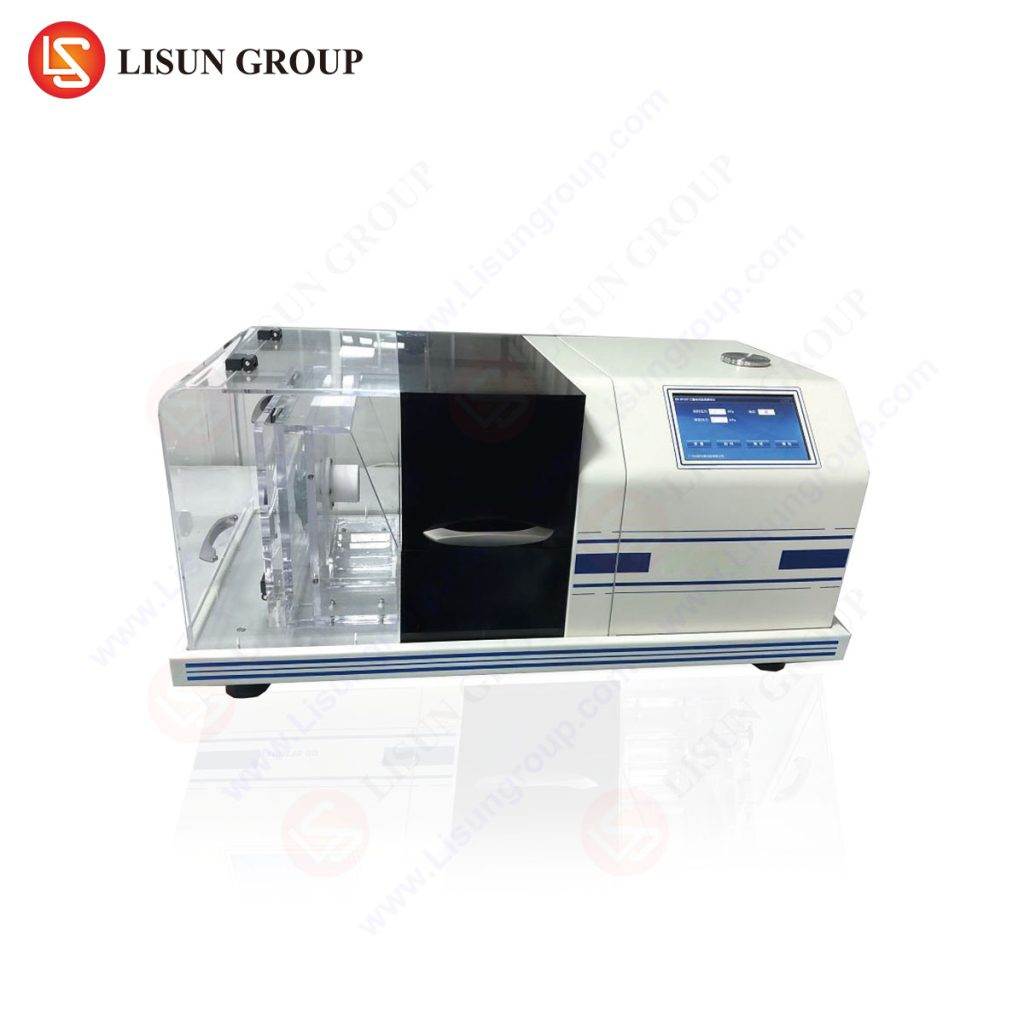

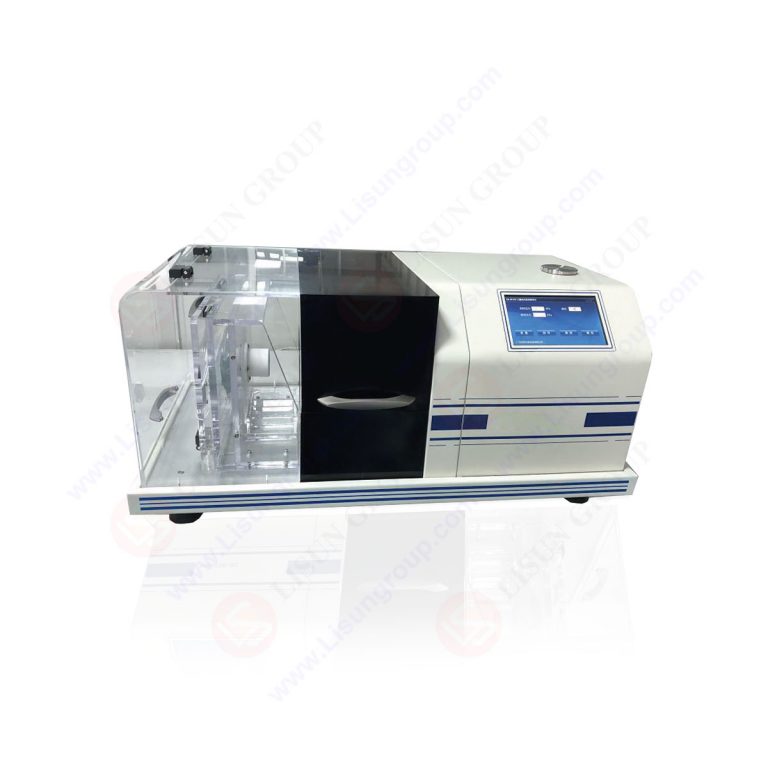

Medical Masks Synthetic Blood Penetration Tester
Product No: WKS-8010
Leave a Message
Description
WKS-8010 Medical Masks Synthetic Blood Penetration Tester evaluates the resistance of medical mask materials to synthetic blood penetration under continuous pressure conditions. This instrument performs visual inspection of synthetic blood penetration through mask materials across multiple test pressure levels, ensuring compliance with medical device testing protocols.
Standard: GB 19083-2010, YY0469-2011
Specification:
| Project | Specification |
| Pressure range | 0~50KPa |
| Accuracy | ±0.5%FS |
| Injection distance | 300mm±10mm adjustable |
| Nozzle diameter | 0.84mm |
| Injection pressure | 10.6 KPa(80 mmHg) 16 KPa(120 mmHg) 21.3 KPa(160 mmHg) |
| Injection speed | 450cm/s, 550cm/s, 635cm/s |
| Dimension | 825mm×440mm×335mm |
| Power supply | AC 220V, 50Hz |
Feature:
- The instrument utilizes a gas source capable of providing (20 ± 1) kPa pressure for continuous sample pressurization without test site spatial limitations.
- Integrated pressure gauge displays adjustable pressure values with precision control.
- Pressurized medium: compressed air.
- Specialized stainless steel penetration test chamber ensures secure sample retention and prevents synthetic blood splatter.
- Square metal blocking mesh: Open space ≥50%; bending deformation ≤5mm at 20kPa pressure.
- Digital timer with ±1 second accuracy.
- Integrated clamping mechanism generates 13.5Nm torque for sample fixation.
