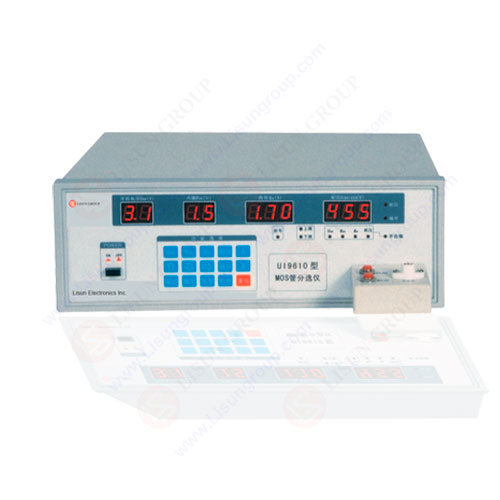

MOS Transistor Parameter Analyzer

MOSFET devices with superior switching characteristics are now implemented extensively in electronic ballasts, switching power supplies, and energy-efficient lighting systems. However, power MOSFET screening and matching present significant challenges for quality assurance departments. The absence of specialized test instrumentation often prevents manufacturing facilities from implementing comprehensive quality control protocols, thereby compromising product consistency and long-term reliability.

The UI9610 MOS Transistor Parameter Analyzer incorporates proprietary firmware architecture specifically engineered to address power MOSFET characterization requirements. This system integrates microprocessor-controlled measurement sequences with intelligent data processing algorithms, delivering precise parameter quantification through simplified operational procedures.

UI9610 MOS Transistor Analyzer Test Parameters and Measurement Ranges:

• Threshold Voltage U_GS(th): 0.1–9.9 VDC
• Internal Drain-Source Resistance R_DS(on): 0.1–9.9 Ω
• Transconductance g_m: 0.30–5.00 S
• Breakdown Voltage U_(BR)DS: 50–650 VDC

Operational features include user-configurable qualification limits, automatic data preservation during power interruption events, and audible/visual alarms when measured values exceed established tolerance thresholds.
