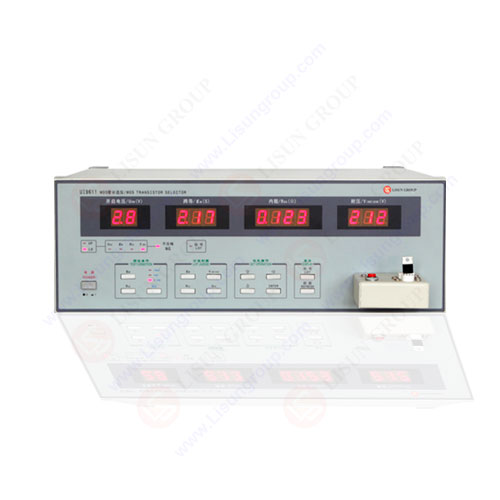

MOS Transistor Testing Selector

Fault diagnosis on transistors using the MOS transistor testing selector: • Measure key parameters: Open voltage UGS(th), internal resistance RDS, Transconductance gm, Withstand voltage V(BR)DS • Test range: UGS(th) 0.1-9.9V; RDS 0.001-9.999Ω; gm 0.10-10.00s; V(BR)DS 50-650V • Adjustable test current range: 0.1A-5A, suitable for various operational conditions • Automatic selection with out-of-limit alarms to increase efficiency • Advanced technique for RDS testing under high current conditions

Tags: MOS Transistor Selector, UI9611
